MMR902

This gauge pressure sensor is a pressure sensor IC utilizing MEMS technology. It combines a MEMS sensor with a Delta-Sigma (⊿Σ) AD converter to output high-precision pressure values digitally. I2C and SPI interfaces are available.

Outline

This product is digitally outputs a pressure value which was corrected in the module. Customers need no correction because it corrects and outputs the differences of sensors and temperature characteristics. It does not require complicated sensor drive or control circuit, and devices with high performance can be made only with this module and an external microcontroller which will be the host.

Blood pressure monitor for home appliance
Devices using air pressure

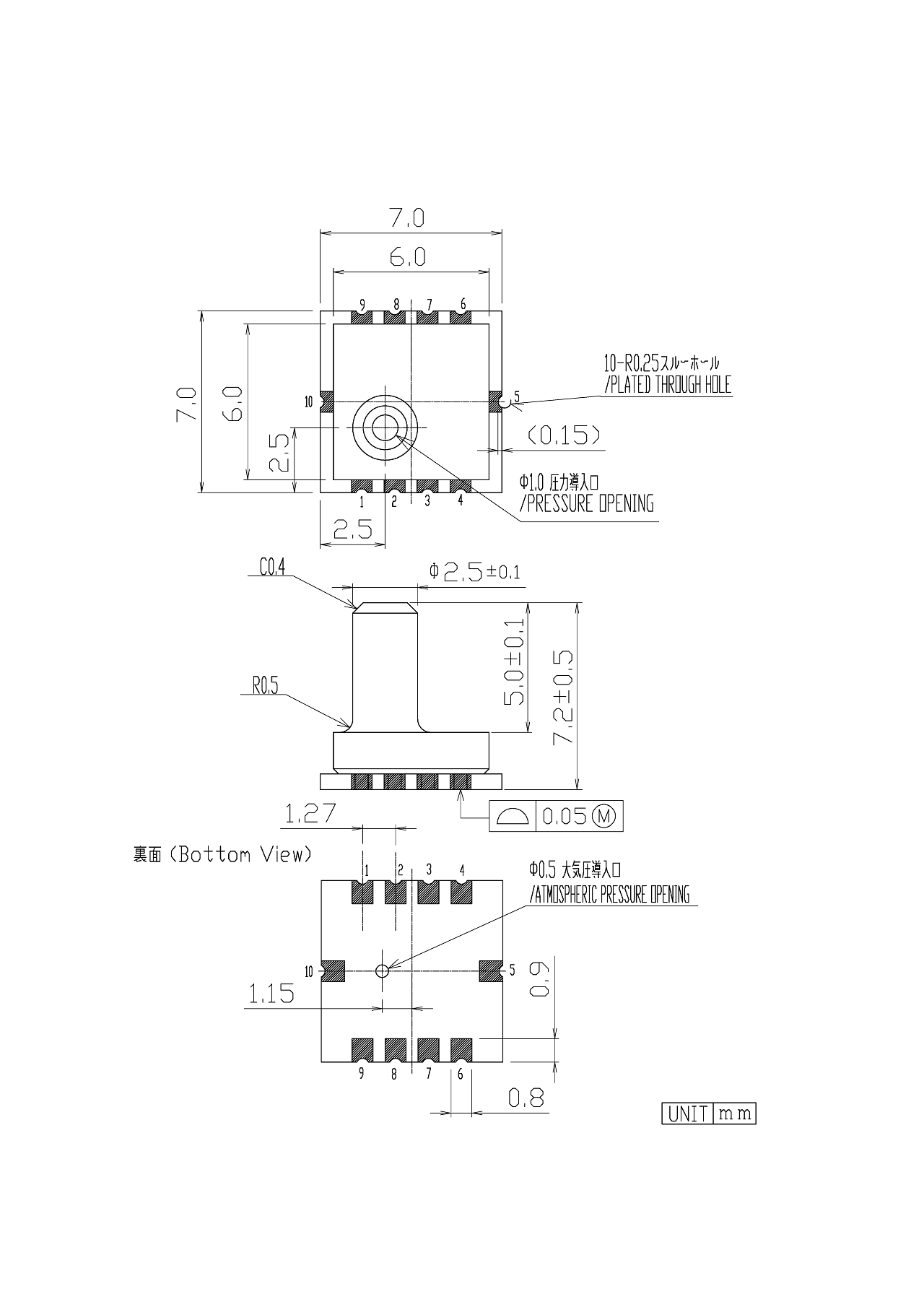

① Small package 7.0(W) ×7.0(D) ×7.2(H)mm
② A high-accuracy pressure value can be output
Pressure resolution：0.001mmHg
Pressure effective resolution：0.020mmHgRMS
Pressure accuracy：±2.0mmHg (±266Pa)
③ It corrects the differences of sensors and temperature
characteristics when shipped from our factory
④ It digitally outputs pressure value by a built-in
sequencer (SPI,I2C)

Pressure Type	Gage Pressure
Pressure Medium	Air (no Condensation)
Supply Voltage Range [V]	1.7 to 3.6
Operating Temperature Range [deg.C]	0 to 60
Operating Pressure Range [kPa]	-4 to 48
Current Consumption [μA]	650
Pressure accuracy [Pa]	±266
Pressure effective resolution [PaRMS]	5.3 / 3.7 / 2.7 / 0.7
Conversion Time [ms]	3.9 / 7.8 / 15.6 / 250.0
Interface	SPI/I2C
