Mitus-RMFZ Series

Minebea Intec

For Inspection of Powders, Granules, Resin Pellets, and Molded Parts (e.g., Connectors)

・Versatile Conveying Options: Supports both gravity-fall and pneumatic (suction) conveying systems (Option).
・Explosion-Proof Design: ATEX-certified models are available for hazardous environments.

Features

・20% improvement in sensibility compared to Vitus (compared to our previous model)
・Selectable combinations of coil, tube and separator
・Multi-frequency technology
・Tracking technology
・Automatic learn function
・Registers up to 200 products
・Protection class IP65

scroll

Specification name	Specification contents	Specification contents2	Specification contents3	Specification contents4	Specification contents5
Item	Mitus-RMFZ 12	Mitus-RMFZ 17.2	Mitus-RMFZ 21.6	Mitus-RMFZ 26.9	Mitus-RMFZ 34.1
Diameter of search coil	120mm	172mm	216mm	269mm	341mm
Product pass-through opening	100mm	150mm	200mm	250mm	300mm
Inner diameter of tube(PP)	96.8mm	152.2mm	190.2mm	237.8mm	299.6mm
Inner diameter of tube(ESD)	97.4mm	141.8mm	177.2mm	221.6mm	279.2mm
Inner diameter of tube(Ceramic)	80mm	100mm	150mm	200mm	250mm
Throughput※1	6,000	13,500	24,000	38,000	54,000
Supply air pressure	4.0bar～10.0bar	4.0bar～10.0bar	4.0bar～10.0bar	4.0bar～10.0bar	4.0bar～10.0bar
Reject method	Separator using compressed air solenoid valve control	Separator using compressed air solenoid valve control	Separator using compressed air solenoid valve control	Separator using compressed air solenoid valve control	Separator using compressed air solenoid valve control
Number of items in memory	50 (Option up to 200)	50 (Option up to 200)	50 (Option up to 200)	50 (Option up to 200)	50 (Option up to 200)
Display method	5.7inch color touch screen	5.7inch color touch screen	5.7inch color touch screen	5.7inch color touch screen	5.7inch color touch screen
Power supply	AC90～260V	AC90～260V	AC90～260V	AC90～260V	AC90～260V
Operating environment	-10℃～+45℃	-10℃～+45℃	-10℃～+45℃	-10℃～+45℃	-10℃～+45℃
Product temperature	-30℃～+55℃	-30℃～+55℃	-30℃～+55℃	-30℃～+55℃	-30℃～+55℃
Protection class	IP65(Option:IP69k)	IP65(Option:IP69k)	IP65(Option:IP69k)	IP65(Option:IP69k)	IP65(Option:IP69k)
Data　interface	SPC@Enterprise / RS232,422 / Profibus / Remote control / OPC DA and OPC UA	SPC@Enterprise / RS232,422 / Profibus / Remote control / OPC DA and OPC UA	SPC@Enterprise / RS232,422 / Profibus / Remote control / OPC DA and OPC UA	SPC@Enterprise / RS232,422 / Profibus / Remote control / OPC DA and OPC UA	SPC@Enterprise / RS232,422 / Profibus / Remote control / OPC DA and OPC UA
Options	USB printing, signal light tower, buzzer, etc.	USB printing, signal light tower, buzzer, etc.	USB printing, signal light tower, buzzer, etc.	USB printing, signal light tower, buzzer, etc.	USB printing, signal light tower, buzzer, etc.

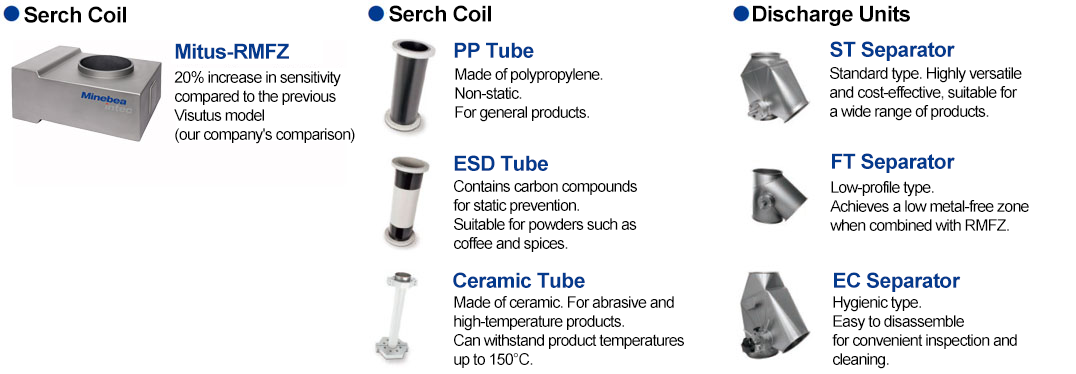

Combine from the parts below based on product characteristics and applications
　

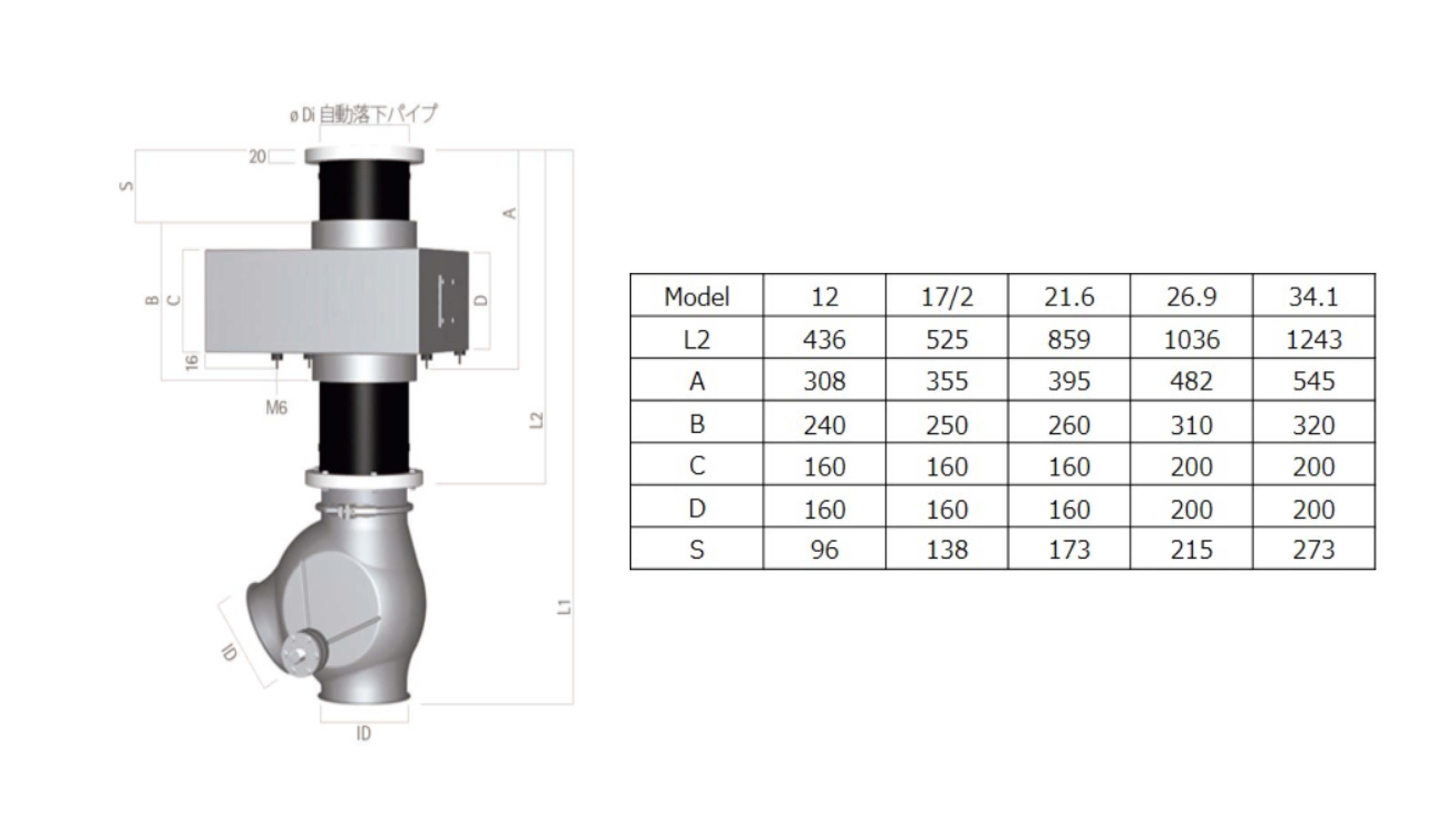

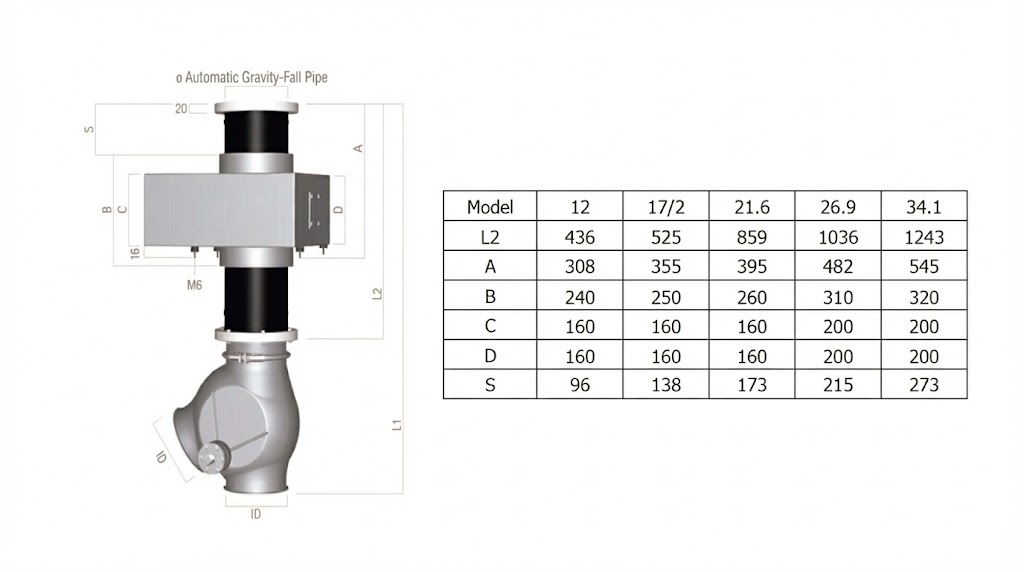

※Dimensions vary depending on the combination

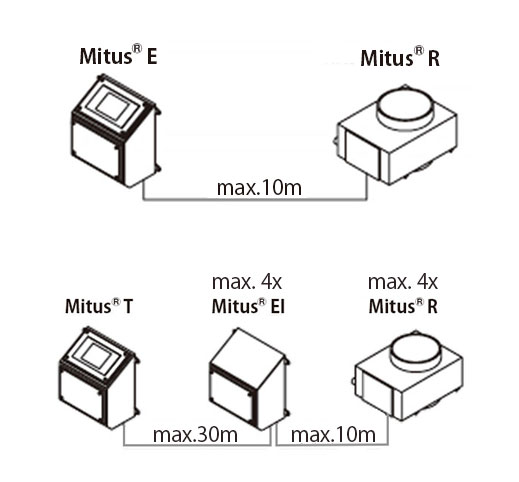

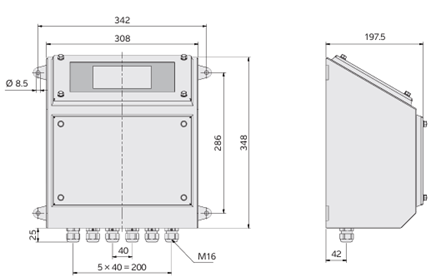

Control unit　terminal

Control unit　terminal
