Features
■Safe detection of metallic foreign objects with the highest detection sensitivity
■Exceptionally space saving
■Simple installation and operation
■Protection class IP65
Specification
| Specification name | Specification contents | Specification contents2 |
|---|---|---|
| Item | Vistus-RS 100 | Vistus-RS 150 |
| Diameter of search coil | 100mm | 150mm |
| Power supply | AC90～260V | AC90～260V |
| Frequency | 47Hz～63Hz | 47Hz～63Hz |
| Power consumption | max100VA | max100VA |
| Product speed | 0.02m/s～20m/s | 0.02m/s～20m/s |
| Operating environment Operating range | -10℃～+55℃ | -10℃～+55℃ |
| Ambient temperature Operation | -30℃～+55℃ | -30℃～+55℃ |
| Relative air humidity Operation | <58% at + 55℃ | <58% at + 55℃ |
| Relative air humidity Storage | <30% at + 70℃ | <30% at + 70℃ |
| Protection class | IP65 | IP65 |
| Housing | 1.4301 stainless steel (AISI304) |
1.4301 stainless steel (AISI304) |
| Search tunnel material | PVC | PVC |
| Data interface | TCP-IP, RS232, RS422, XML server/client, Profibus | TCP-IP, RS232, RS422, XML server/client, Profibus |
| Options | USB printing, signal light tower, buzzer, etc. |
USB printing, signal light tower, buzzer, etc. |
Table of P/N
| Parts No. | Catalog data |
|---|---|
| Vistus-RS Series | DS_Vistus_RS_enカタログ.pdf |

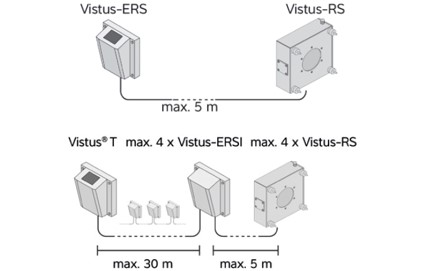

Controller options
| Controller Options Diagram | Parts No. | User interface | Relay outputs | Freely programmable outputs | Number of search coils | Max. cable length (between coil and terminal) |
Class of protection | Housing | Weight |
|---|---|---|---|---|---|---|---|---|---|
 Vistus-ERS.jpg |
Vistus ERS |
145mm 5.7” touch screen | 1 x error/3 x free | 4 | 1 | 5m | IP65 | 1.4301 stainless steel (AISI304) | About 7kg |
 Vistus-T+ERSI.jpg |
Vistus T+Vistus ERSI |
145mm 5.7” touch screen | 1 x error/3 x free | 4 | 3 | 35m | IP65 | 1.4301 stainless steel (AISI304) | About 7kg |

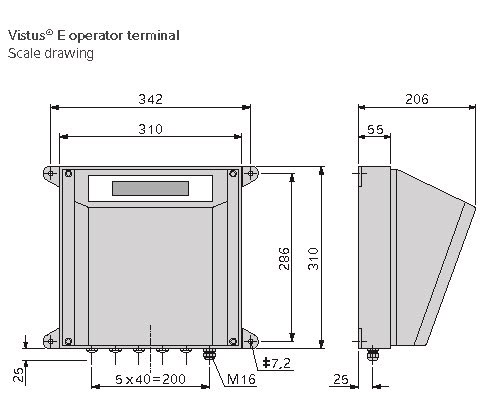

Control unit terminal
Control unit terminal
