Secus-U

  • Minebea Intec

Features

■Various coil sizes
■Tracking technology
■5.7” color touch screen display
■Robust design
■Memory for 200 types of products
■Protection class IP55, IP66 optional

Specification

Specification name Specification contents
Power supply 90V~260V
Frequency 47Hz~63Hz
Outputs 3 freely programmable error outputs, 1 fixed output
Operating environment Operating range -10℃~+55℃
Product temperature -30℃~+55℃, up to +150℃ if equipped with air cooling
Protection class IP55 (standard), IP66 (option)
Housing AISI 304 (1.3305) Steel (painted)
Data interface TCP-IP, RS232, RS422, CAN bus, Fieldbus, Profibus
Options Log-in by means of fingerprint sensor、Remote control、End position monitoring、Rejection monitoring、USB print, etc.

Table of P/N

Parts No. Weight(depending on design)lower limit
[kg]
Weight(depending on design)upper limit
[kg]
Catalog data
Secus-U 5 500 DS_Secus_en.pdf

External view

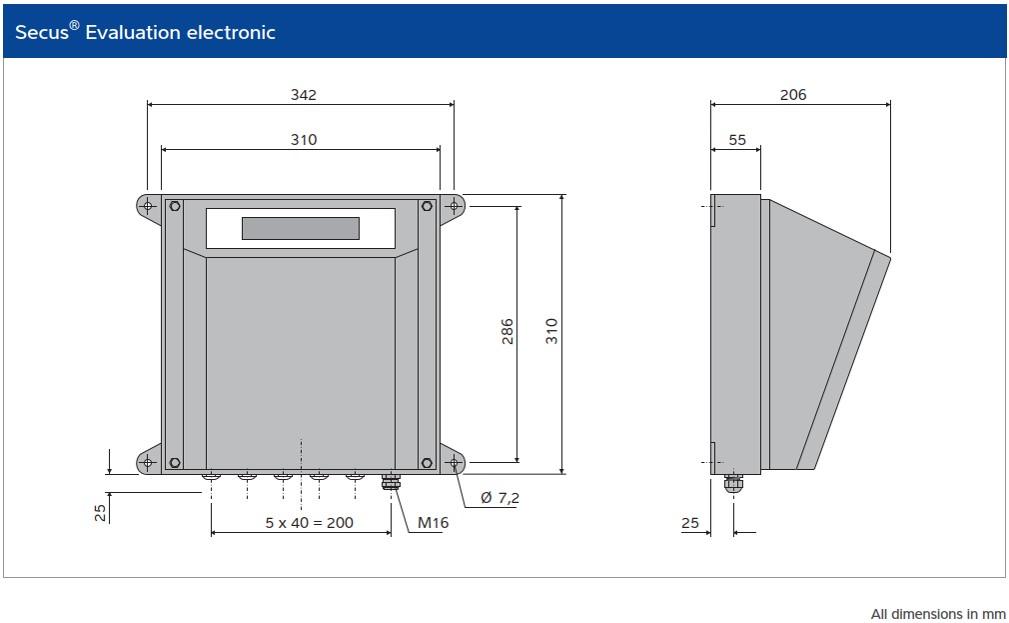

Control unit terminal

Control unit terminal
