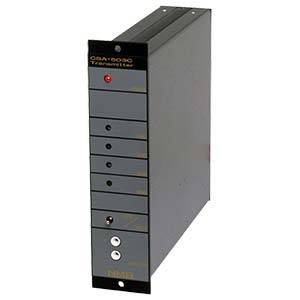

Transmitter CSA-503C

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・Built-in remote Sensing circuit
・Automatic zero function(Option)
・CALIB. is equipped normally.
・CHECK is equipped normally

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.3VDC within 120 mA (Changeable to 2.5 VDC or 5 VDC) with remote sensing function
Input range	0.3 mV/V ~ 3 mV/V
Output	Output ±10 V (±0.3 mV/V input at bridge power supply DC10 V)
Output Load Resistance	2 k-ohm or more
Zero adjustment range	±2.4 mV/V
Non-linearity (Display and voltage output)	0.01 %F.S.
Temperature efficient	Zero point within ±0.45 μV/℃ (Input conversion), Sensitivity within ±0.005 %F.S./℃
Frequency response range	10 Hz (Changeable to 1 Hz, 100 Hz)
Operating temp. / humidity range	Temperature -10 ℃~ 50 ℃, Humidity 80 %RH or less (Non condensing)
Power supply	Power supply voltage 100 VAC±10 VAC, 50/60 Hz, Power consumption Approx.10 VA (at 100 VAC)
Outline dimensions (WxHxD)	42 mm x 176 mm x 164.4mm (Excludes protruding parts)
Weight	Approx. 1.5 kg
