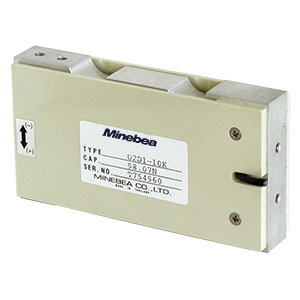

For commercial scale U2D1-＊-C3 OIML standard

Load cells to be applied to a electrical commercail scale.

Features

・Mid capacity, tall profile.
・Accurate and reliable model with OIML R60 C3 certified.

scroll

Specification name	Specification contents
Accuracy class	OIML R60 C3
Maximum scale interval	3,000
Rated capacity	6kg～25kg
Minimum detected scale (Vmin)	0.6g～2.5g
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2 mV/V±0.2 mV/V
Non-linearity	0.015 %R.O.
Hysteresis	0.015 %R.O.
Repeatability	0.010 %R.O.
Creep	0.016 %R.O./30 min
Creep recovery	0.016 %R.O./30 min
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.1 mV/V
Input resistance	400 Ω ~ 450 Ω
Output resistance	345 Ω ~ 355 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.012 %LOAD/10 ℃
Class of protection	IP40 or equivalent
Material of element	Alluminium alloy
Durability	1,000,000 times with rated load applied.
Effect of eccentric load	・The maximum size of loading plate : 400 mm x 600 mm ・The center of loading plate and also center of load cell should be the same position ・Error is withing 0.02 %R.O. applied with 1/2 of rated capacity at the position of 150 mm of eccentricity.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kg]	Weight(Approx.) [g]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
U2D1-6K-C3	6	350	140	0.48	IP40 or equivalent	U2D1-6K-C3.STEP	u2d1_3k~20k.dxf
U2D1-10K-C3	10	350	180	0.45	IP40 or equivalent	U2D1-10K-C3.STEP	u2d1_3k~20k.dxf
U2D1-15K-C3	15	350	230	0.41	IP40 or equivalent	U2D1-15K-C3.STEP	u2d1_3k~20k.dxf
U2D1-20K-C3	20	350	280	0.38	IP40 or equivalent	U2D1-20K-C3.STEP	u2d1_3k~20k.dxf
U2D1-25K-C3	25	550	550	0.56	IP40 or equivalent	U2D1-25K-C3.STEP	u2d1_25k~50k.dxf
