06920GA

Blowers rotate fans to cool the inside of office automation (OA) equipment by directing heat outside. These motors are used for such applications as the OA equipment in which a stronger airflow is required for cooling than the normal type of fan motors.

General Specifications

Motor Protection:Auto Restart / Polarity Protection
Insulation Resistance:10M ohm or over with a DC500V Megger
Dielectric Withstand Voltage:AC700V 1s
Allowable Ambient Temperature Range :
-10deg.C - +70deg.C (Operating)
-40deg.C - +70deg.C (Storage)
non-condensing environment

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Nominal Voltage [V]	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Current [A]	Input Power [W]	Speed [min-1]	Max. Air Flow [m3/min]	Max. Air Flow [CFM]	Max. Static Pressure [Pa]	Max. Static Pressure [In H2O]	Noise [dB]	Mass [g]
06920GA-12L-AA-00	12	6.0	13.8	0.09	1.08	2900	0.14	4.90	66	0.26	23.0	55
06920GA-12M-AA-00	12	6.0	13.8	0.15	1.80	3500	0.17	6.00	100	0.40	29.0	55
06920GA-12N-AA-00	12	6.0	13.8	0.25	3.00	4100	0.20	7.10	150	0.60	33.0	55
06920GA-24L-AA-00	24	12.0	26.4	0.05	1.20	2900	0.14	4.90	64	0.26	23.0	55
06920GA-24M-AA-00	24	12.0	26.4	0.08	1.92	3500	0.17	6.00	100	0.40	29.0	55
06920GA-24N-AA-00	24	12.0	26.4	0.13	3.12	4100	0.20	7.10	150	0.60	33.0	55

Rotation: Clockwise as seen from the label side
*1: Average Values in Free Air

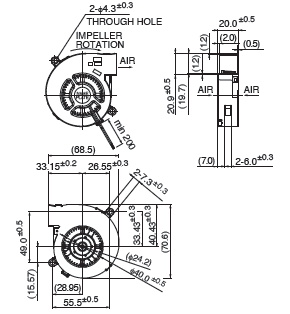

Outline

Characteristic Curves

25deg.C 70,000 Hours *Failure Rate 10% (L10 Life)
Casing Lower:Plastic (Black) UL94V-0
Casing Upper:Steel
Impeller:Plastic (Black) UL94V-0
Bearing:Ball Bearing
Lead Wire:UL1061 AWG26 +: Red, -: Black
Associated Data
- PDF product catalog
CAD
- 3D/2D CAD
