07525GA

Blowers rotate fans to cool the inside of office automation (OA) equipment by directing heat outside. These motors are used for such applications as the OA equipment in which a stronger airflow is required for cooling than the normal type of fan motors.

General Specifications

Motor Protection:Auto Restart / Polarity Protection
Insulation Resistance:10M ohm or over with a DC500V Megger
Dielectric Withstand Voltage:AC700V 1s
Allowable Ambient Temperature Range :
-10deg.C - +70deg.C (Operating)
-40deg.C - +70deg.C (Storage)
non-condensing environment

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Nominal Voltage [V]	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Current [A]	Input Power [W]	Speed [min-1]	Max. Air Flow [m3/min]	Max. Air Flow [CFM]	Max. Static Pressure [Pa]	Max. Static Pressure [In H2O]	Noise [dB]	Mass [g]
07525GA-12L-AA-00	12	6.0	13.8	0.16	1.92	3000	0.22	7.80	94	0.38	39.0	90
07525GA-12M-AA-00	12	6.0	13.8	0.19	2.28	3300	0.24	8.50	124	0.50	41.0	90
07525GA-12N-AA-00	12	6.0	13.8	0.25	3.00	3600	0.27	9.50	153	0.61	43.0	90
07525GA-24L-AA-00	24	10.0	27.6	0.10	2.40	3000	0.22	7.80	94	0.38	39.0	90
07525GA-24M-AA-00	24	10.0	27.6	0.11	2.64	3300	0.24	8.50	124	0.50	41.0	90
07525GA-24N-AA-00	24	10.0	27.6	0.14	3.36	3600	0.27	9.50	153	0.61	43.0	90

Rotation: Clockwise as seen from the label side
*1: Average Values in Free Air

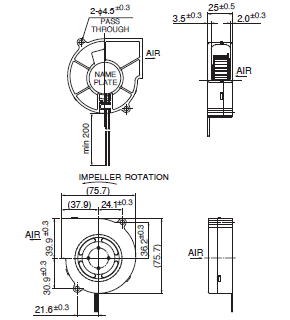

Outline

Characteristic Curves

25deg.C 70,000 Hours *Failure Rate 10% (L10 Life)
Casing:Plastic (Black) UL94V-0
Impeller:Plastic (Black) UL94V-0
Bearing:Ball Bearing
Lead Wire:UL1007 AWG26 +: Red, -: Black
Associated Data
- PDF product catalog
CAD
- 3D/2D CAD
