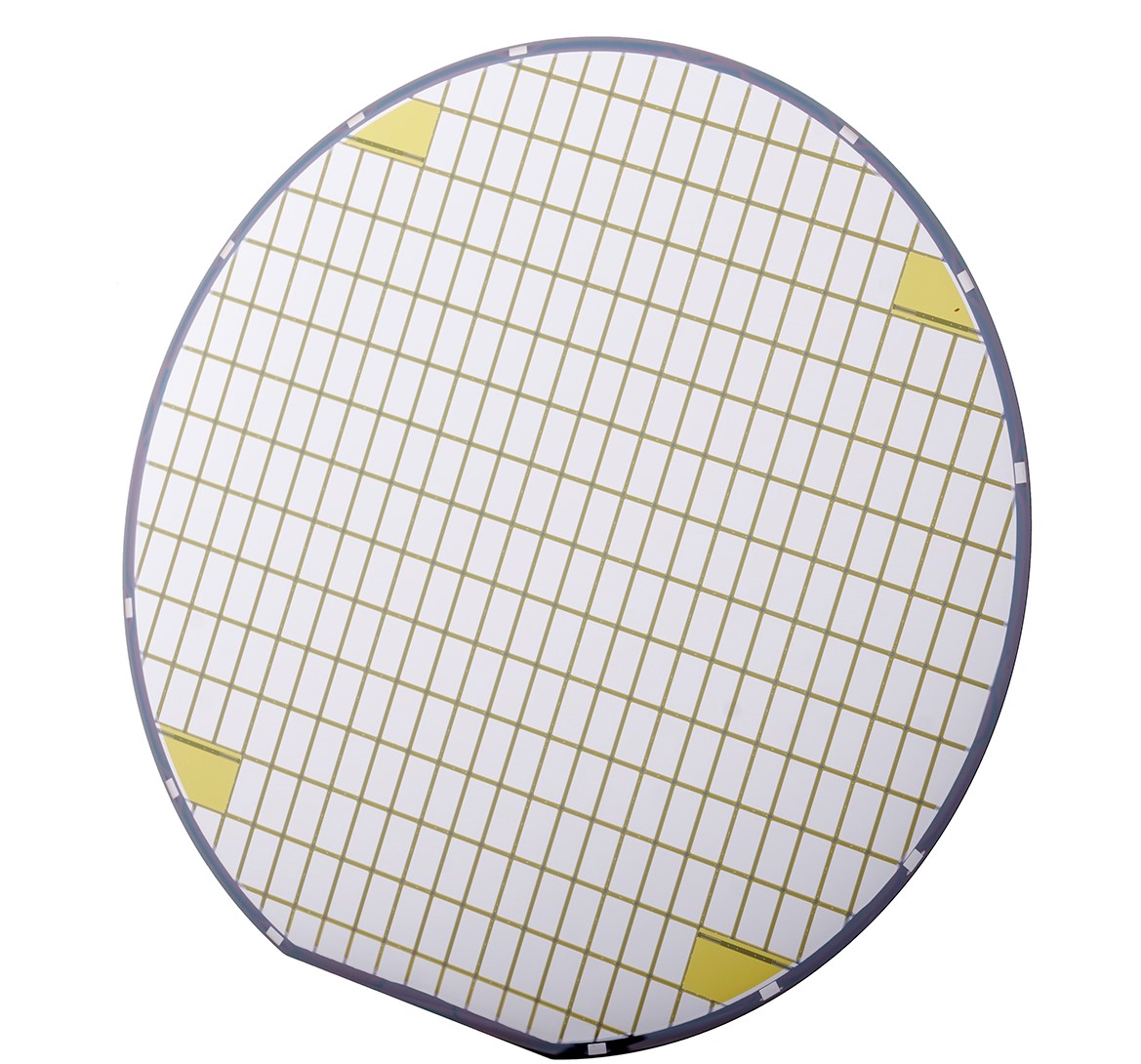

MI Series FRD
Fast Recovery Diode:Second Technology（Our Company)
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Associated Data |
Reverse voltage |
Forward current |
Forward voltage |
Forward voltage |
Die size |
Die size |
Junction temperature |
|---|---|---|---|---|---|---|---|---|
| MMK6575F00xx | PDF product catalog | 650 | 75 | 1.45 | 1.85 | 5.40 | 3.80 | -40 to 175 |
| MMK65A0F00xx | PDF product catalog | 650 | 100 | 1.45 | 1.85 | 7.00 | 3.80 | -40 to 175 |
| MMK65A5F00xx | PDF product catalog | 650 | 150 | 1.45 | 1.85 | 7.80 | 4.90 | -40 to 175 |
| MMK65B0F00xx | PDF product catalog | 650 | 200 | 1.45 | 1.85 | 9.70 | 5.20 | -40 to 175 |
| MMK75B8F00xx | PDF product catalog | 750 | 275 | 1.70 | 2.10 | 9.20 | 5.40 | -40 to 175 |
| MMKC550F00xx | PDF product catalog | 1250 | 50 | 1.70 | 2.10 | 6.30 | 4.50 | -40 to 175 |
| MMKC575F00xx | PDF product catalog | 1250 | 75 | 1.70 | 2.10 | 7.30 | 5.40 | -40 to 175 |
| MMKC5A0F00xx | PDF product catalog | 1250 | 100 | 1.70 | 2.10 | 8.40 | 6.10 | -40 to 175 |
| MMKC5A5F00xx | PDF product catalog | 1250 | 150 | 1.70 | 2.10 | 10.80 | 6.80 | -40 to 175 |
| MMKC5B0F00xx | PDF product catalog | 1250 | 200 | 1.70 | 2.10 | 14.20 | 6.70 | -40 to 175 |
| MMKC5B0FA0xx | PDF product catalog | 1250 | 200 | 1.70 | 2.10 | 12.10 | 8.70 | -40 to 175 |
