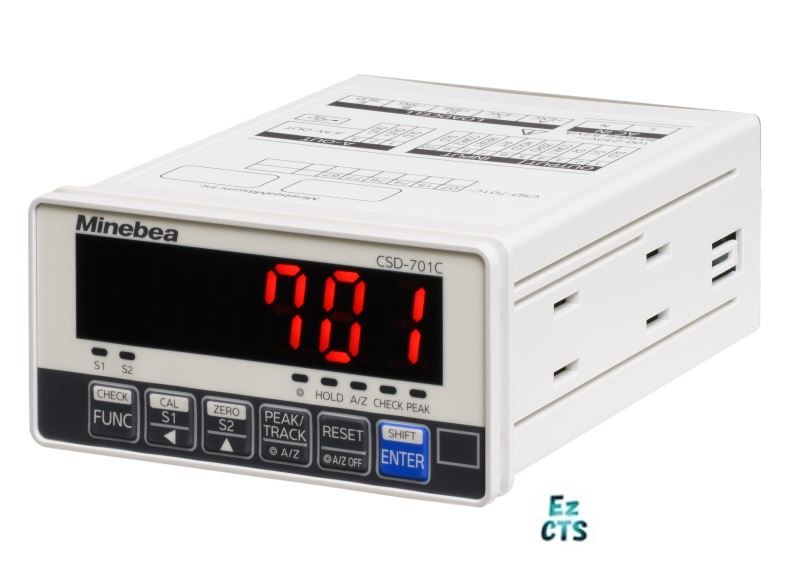

Digital Indicator　CSD-701C

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Compact size 48 mm x 96 mm
・Peak Hold funciton is available as an option.
・Up to 4 strain gage transducers may be connected.
・BCD output as an option.
・Protection grade : IP65 equivalent
・Additional USB interface, EzCTS (sold separately) support possible

scroll

Specification name	Specification contents
Bridge power supply	DC5 V±0.25 V within 60 mA (changeable to DC2.5 V）
Input range	F.S. setting is available with the input range from －3.1 mV/V to 3.1 mV/V
Output range	DC±5 V Load resistance is 5 kΩor more. (F.S. setting is available by function)
Output times	100 times/s(Changeable to 10 times/s or 20 times/s or 50 times/s)
Output resolution	1/12 000 and above
Zero adjustment range	－2.5 mV/V～2.5 mV/V
Non-linearity	Display 0.02 %F.S.、Output 0.04%F.S.
Temperature efficient	Zero ± 0.2 μV/℃、Sensitivity ± 0.001 5 %F.S./℃ (When the calibration is made at 0.2 μV/d or more of the input sensitivity.)
Input noice	± 0.2 μVp−p or less (At the default setting of all filter.)
Digital low pass filter	0.1 Hz ~ 10 Hz (digital, adjustable in 0.1 Hz increments)
A/D sampling speed	100 times/s (Changeable to 10, 50, 100 times/s.)
Display range	－99 999 ~ 99 999
Display times	4 times/s (Changeable to 20 times/s or 50 times/s or 100 times/s )
Decimal point display	Changeable to No display, 10¹, 10², 10³, 10⁴
External control function	4 points　ZERO、PEAK/TRACK/A/Z、HOLD、RESET/A/Z OFF
Comparator function	Set value ：－99 999 ~ 99 999 Set quantity ：2 points of S1 and S2 Conversion times of comparator ：Synchronous with A/D sampling
Operating temp. /humidity range	Temperature -10 ℃ ~50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	100 VAC ~ 240 VAC 50/60 Hz (Permissible variable range 85 VAC ~ 264 VAC)
Power consumption	Max. approx. 9.2 VA (with option, at 230 V AC), max. approx. 5.6 VA (with option, at 100 V AC)
Outline dimensions (WxHxD)	96 mm×48 mm×138 mm
Weight	Approx. 0.35 kg (Options, including mounting kit)
Protection code	IP65 equivalent (Only for the fron panel when the attached panel mounting gascket is installed.
