These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.
Features

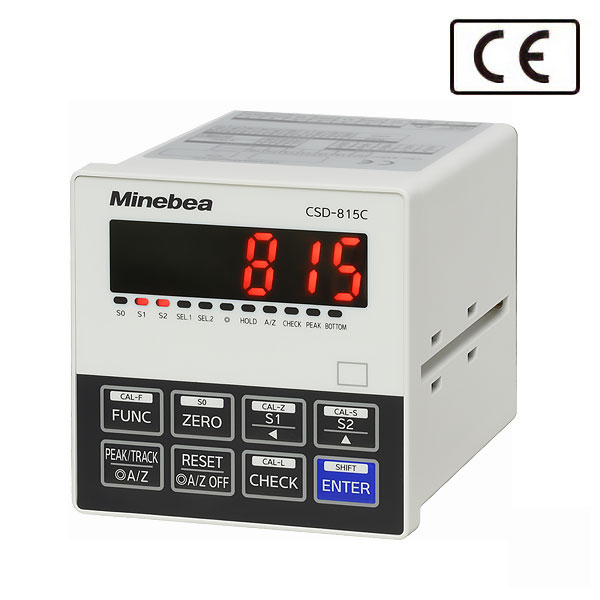

・Digital indicator for the strain gage transducers 96 mm x 96 mm.
・Equipped with peak hold function.
・Equipped with CC-Link interface.
・Protection grade : IP65 (Front panel section)
・CE mark applied.
-
-
scroll
Specification name
Specification contents
Bridge power supply 5 VDC±0.25VDC within 60 mA (Changeable to 2.5 VDC) Input range F.S. setting is available with the input 3.1 mV/V.(When the bridge power supply is 5 VDC) Output range ±5 VDC Load resistanceis 5 kΩ or more. (F.S. setting is available by function) Output times Changeable to 4 times/s,20 times/s, 50 times/s or 100 times/s.(Synchronous with
A/D sampling .)Output resolution Approx. 1/12 000 Zero adjustment range ±2.5 mV/V Non-linearity Display 0.01 %F.S., Output 0.05 %F.S.、Output 0.04 %F.S. Input noice Tracking: ±0.2uVp-p or less Analog,Peak Hold: ±0.6uVp-p or less (at various filter default settings) Input filter Tracking: digital low-pass filter 0.1 to 20.0 Hz (adjustable in 0.1 Hz increments), analog peak hold: analog low-pass filter 2 Hz, 10 Hz, 100 Hz, 2 kHz A/D sampling speed 10 times/s, 20 times/s, 50 times/s, 100 times/s, 200 times/s CHECK Approx. 0.3 mV/V (Can be set in the range of approx. 0 mV/V to 2.4 mV/V in 0.1 mV/V increments) Load display 7 segment red LED with 17 mm character's height Display range -99 999 ~ 99 999 Display times 4 times/s (Changeable to 20 times/s, 50 times/s or 100times/s) External control function ZERO, PEAK/TRACK/A/Z, HOLD, RESET/A/ZOFF, SEL1, SEL2 Comparator function Set value : -99 999~99 999 -99 999 ~ 99 999
Set quantity : 3 points of S0, S1 and S2 *"S0" is set bv function command.
Conversion times ofcomparator : Synchronized with A/D samplingVarious functions Zero tracking, Digital low-pass filter, Digital filter, Stabilization filter, Easy calibration, Calibration data switching, Comparator issue switching, Communication calibration, CHECK value, HOLD target switching, Key lock, Digital peak hold, Analog peak hold, Monitor mode Operating temp. /humidity range Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less(Non condensing) Power supply voltage 100 VAC ~ 240 VAC 50/60Hz 100 VAC ~ 240 VAC 50/60Hz
(permissible variable range from 85 VAC to 264 VAC)Power consumption Approx.13.5 VA (Optional, at AC230V)
Approx.9.0VA (Optional, at AC230V)Outline dimensions (WxHxD) 96 mm x 96 mm x 129.5mm (excludes protruding parts) Weight Approx. 500 g (without options) Protection code IP65 or equivalent (Only for the front panel when the attached panel mounting gascket is
installed.Start guide
-
Instruction Manual
Specification
CAD
-
- Current output
- External control (voltage input type)
- BCD output
- RS-232C interface
- RS-422/485 interface
- CC-Link interface
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
