Digital Indicator

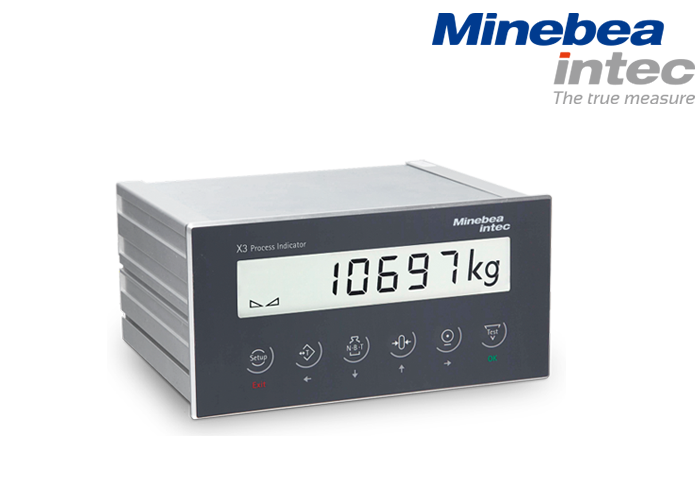

PR5410 Process Indicator

  • Minebea Intec


■PR5410 is a weighing module that achieves 10000e Class Ⅲ level accuracy
■High speed conversion enables response times from 10 ms
■10/100 Mbits/s LAN adapter is built in
■Load cell,control input/output optocoupler,LAN adapter connector and RS232C interfaces are mounted on the back panel
■Enables actual load adjustment using weights,calibration of numerical input in mV/V,and load cell date input(smart calibration)
■Large display(height 18mm),cleary visible backlight LCD display
■OIML R76 10,000e
■Internal resolution:1/4,000,000


Specification name Specification contents
Class OIML R76; Class Ⅲ 10000e acc. To EN45501
Non-linearity <0.003%
Load cell Nominal supply voltage DC12V max160mA, with remote sensing function, max 8 x 650Ω load cells (min 75Ω), max 4 x 350Ω load cells
Temperature effects Zero: <0.05uV/K RTI, Span: <±2.5ppm/K
Input signal range 0~36mV
Minimum entry force sensitivity 0.2μV/count
Internal resolution max 4,800,000 counts at 3mV/V
Conversion speed 5~1600ms
Power supply AC94V~264V 50/60Hz 11W/13VA ( max )
Ambient operating temperature -10℃~50℃
Ambient operating humidity 95%RH or less (no condensation)
Temperature during storage and transportation -20℃~70℃
Class of protection Front panel: IP65, housing: IP30
Option PR5510/04: Serial interface RS-485/422+RS-232C
Option1 PR5510/07: Analog output (current) 0/4~20mA, load resistance max 500Ω
Option2 PR5510/08: BCD output open emitter
Option3 PR5510/09: BCD output Open collector
Option4 PR5510/12: Digital input/output Photocoupler input 2 points (tare/un-tare, print command), output 6 points (weight error, zero, limit 1/2, near zero, scale error)
Option5 PR1721/31: Profibus-DP interface
Option6 PR1721/34: DeviceNet interface
Option7 PR1721/35: CC-link interface
Dimension (W x H x D) 192 mm×96 mm×150 mm
Weight Approx. 1.45 kg
Gross Weight 2 kg

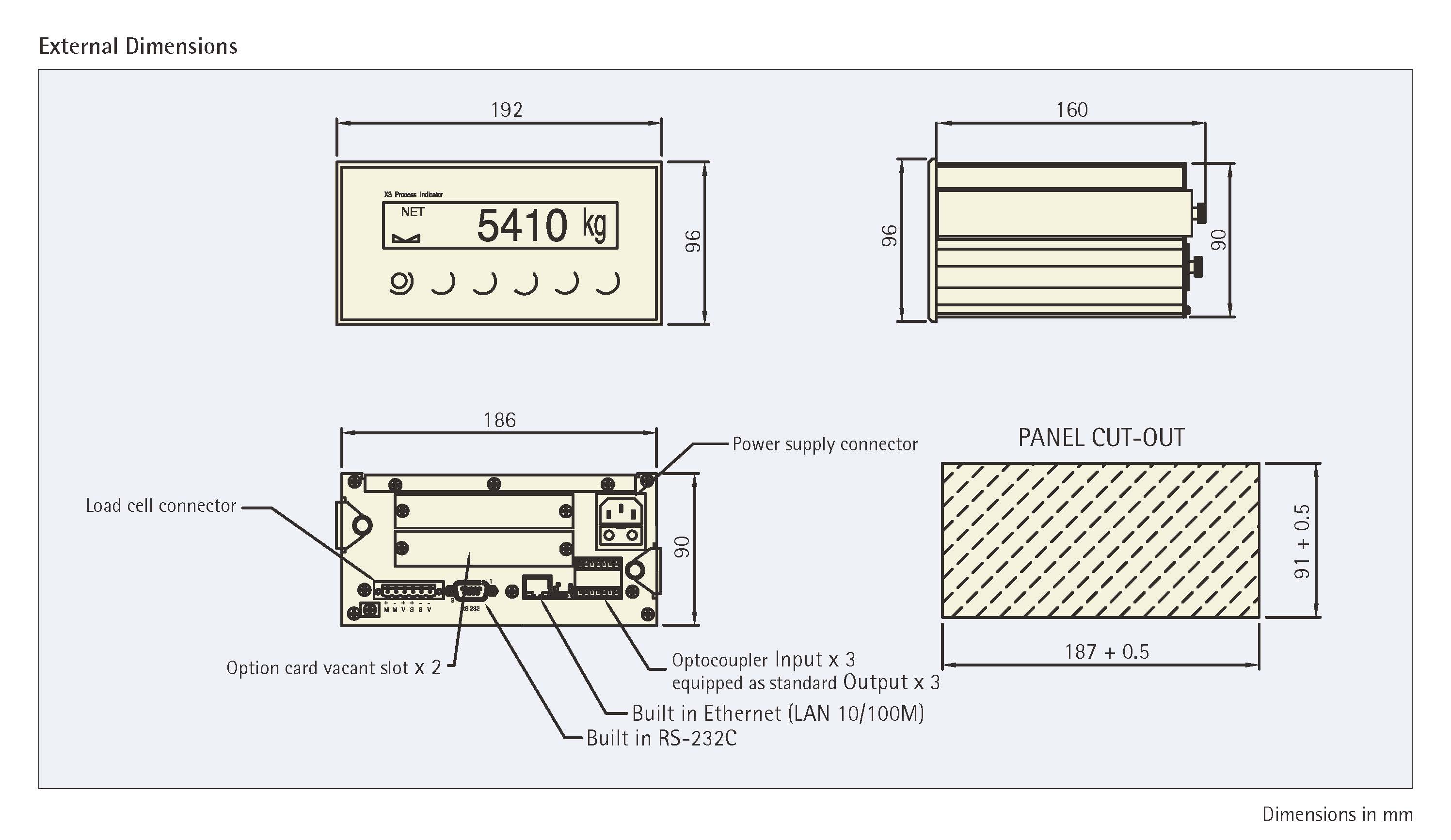

External view
