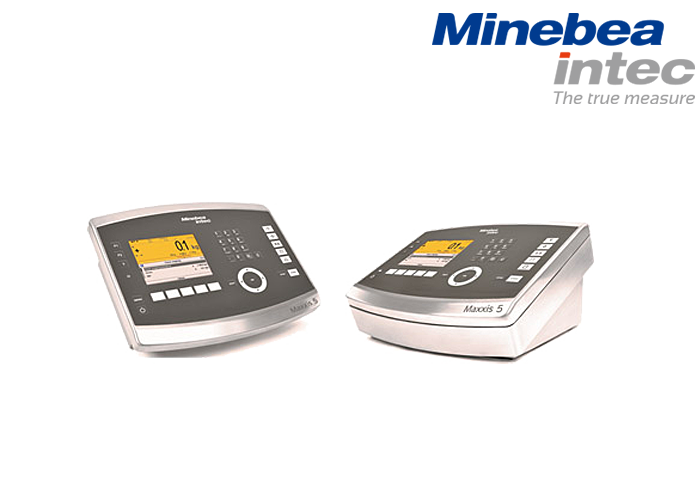

Process Controllers maxxis5 PR5900

Minebea Intec

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Data Integrity (DI) Support
・User management and password management functions included
・Compatible with load cells, digital load cells, platform scales, and electromagnetic platform scales (optional)
・Intrinsic safety explosion-proof circuit built-in (optional)
・Class of protection: IP65 (front panel section)
・Panel mount type (G1), desktop type (option G2), wall mount type (option G3)
・Extensive options including RS-232C/RS485, analog and digital I/O
・Data backup and restore function (in SD memory card)

scroll

Specification name	Specification contents
Class	OIML R76; Class Ⅲ 10000e acc. To EN45501
Non-linearity	<0.003%
Load cell Nominal supply voltage	DC12V max160mA, with remote sensing function, W1 and W2 max 8 x 650Ω load cells (min 75Ω), max 4 x 350Ω load cells
Temperature effects	Zero:<0.05uV/K　RTI、Span:<±4ppm/K
Input signal range	0～36mV
Minimum entry force sensitivity	0.2 μV/d (0.5 μV/e for legal metering)
Internal resolution	max 7,500,000 counts at 3mV/V
Conversion speed	5～1600ms
Power supply	AC100-240V(-15/+10%), 50-60Hz, 44VA
Ambient operating temperature	-10℃～40℃
Ambient operating humidity	95%RH or less (no condensation)
Temperature during storage and transportation	-20℃～70℃
Class of protection	Panel mount type (G1): IP65 (front panel) Desktop type (G2/G3):IP68/IP69K
Standard interface	RS-232C, RS-485, LAN port, Digital I/O, SD card port (SD memory card (8G) standard), USB port
Explosion-proof certification in Japan(DEKRA)	[ Ex ib Gb ] ⅡC , [ Ex ib Db ] ⅢC ( DEK18.0095X ) [ Ex ib Gb ] ⅡC , [ Ex ib Db ] ⅢC ( DEK18.0097X )
Conforms to overseas explosion protection standards	【IECEx】Ex ib ⅡC T4 Gb / 【ATEX】 Ⅱ2G Ex ib ⅡC T4 Gb
Option	W1: A/D converter
Option1	L8: 24VDC power supply (-10/+10%)
Option2	L14: Cable clamp specification
Option3	L15: Reinforced frame
Option4	B15 (Option 1): RS-485
Option5	B25 (Option 2): RS-485 (with power supply for connection to IS electromagnetic platform scales)
Option6	B16 (Option 1): Analog output 0/4-20 mA
Option7	B26 (Option 2): Analog output 0/4-20 mA
Option8	B17 (Option 1): Digital I/O 4 points
Option9	B27 (Option 2): Digital I/O 4 points
Option10	C21 (FB option): Profibus-DP interface
Option11	C24 (FB option): DeviceNet interface
Option12	C25 (FB option): CC-Link interface
Option13	C26 (FB option): Profinet interface
Option14	C27 (FB option): Ethernet/IP interface
Option15	E5: Alibi memory audit trail function

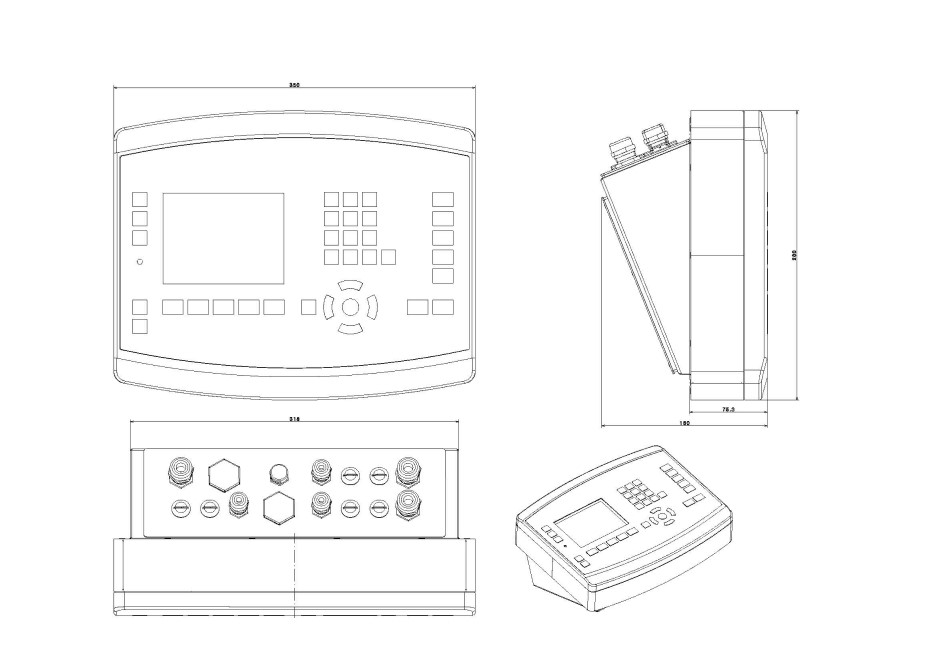

Dimension (W x H x D)	350 mm×280 mm×(Panel-mounted 92 /Desktop 160)
Weight	Approx. 3 kg
Gross Weight	4 kg
