Features
●Intrinsically safe explosion-proof interface developed especially for load cells
●Load cell output changes due to temperature effects are minimal,enabling high accuracy measurement
●Dedicated interface for load cells installed in hazardous locations
●The PR1626/60 can connect up to four 650Ω load cells
●The PR1626/61 can be connected to load cell type explosion-proof scales and connect up to eight 650Ω load cells
●W＆M Approval OIML R76 class Ⅲ
Specification
| Specification name | Specification contents |
|---|---|
| Class of protection | IP20 |
| Power supply voltage | DC24V(DC18V~30) |
| Power consumption | 3.8W/6.6V |
| Measurement voltage | 0～40mV |
| Operating temperature range | -10℃～55℃ |
| Operating humidity range | -40℃～70℃ |
| Case・Material | Makrolon |
| Explosion-proof 【JPEx】 | [E x ib Gb ] ⅡB/C(DEK19.0060 / DEK19.0059) |
| Explosion-proof 【IECEx】 | [E x ib ] ⅡB/C(PTB 18.0032) |
| Explosion-proof 【ATEX】 | II(2)G[E x ib] ⅡB/C(PTB 02 ATEX 2056) |
| mounting | DIN rail mounting type |
| Accessories | CD(Manuals, certificates) |
Item list
| Parts No. | Load cell Nominal supply voltage [DC] |
load [min.] |
Weight [kg] |
Gross Weight [kg] |
Dimensions(W) [mm] |
Dimensions(D) [mm] |
Dimensions(H) [mm] |
Specification sheet | Instruction Manual |
|---|

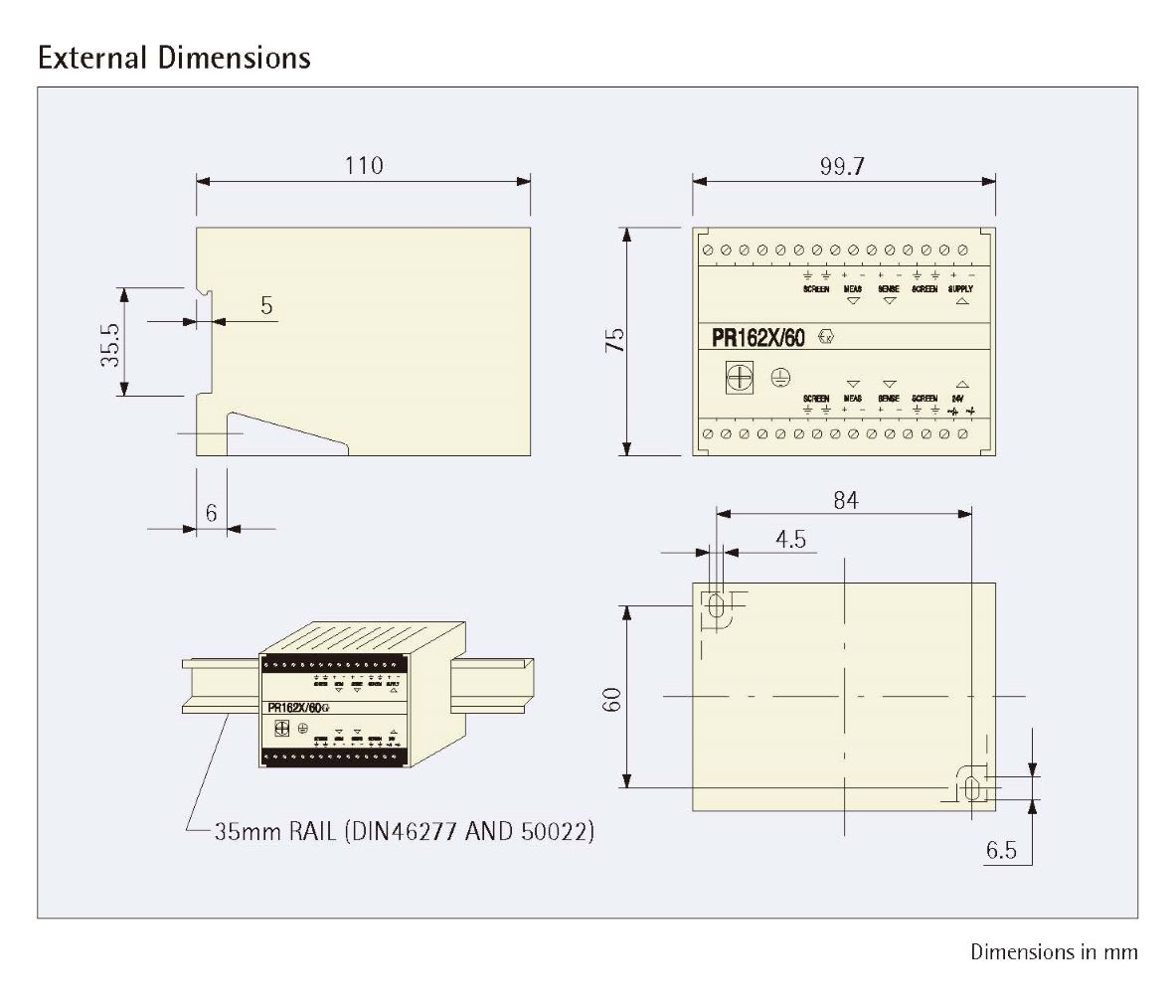

External view

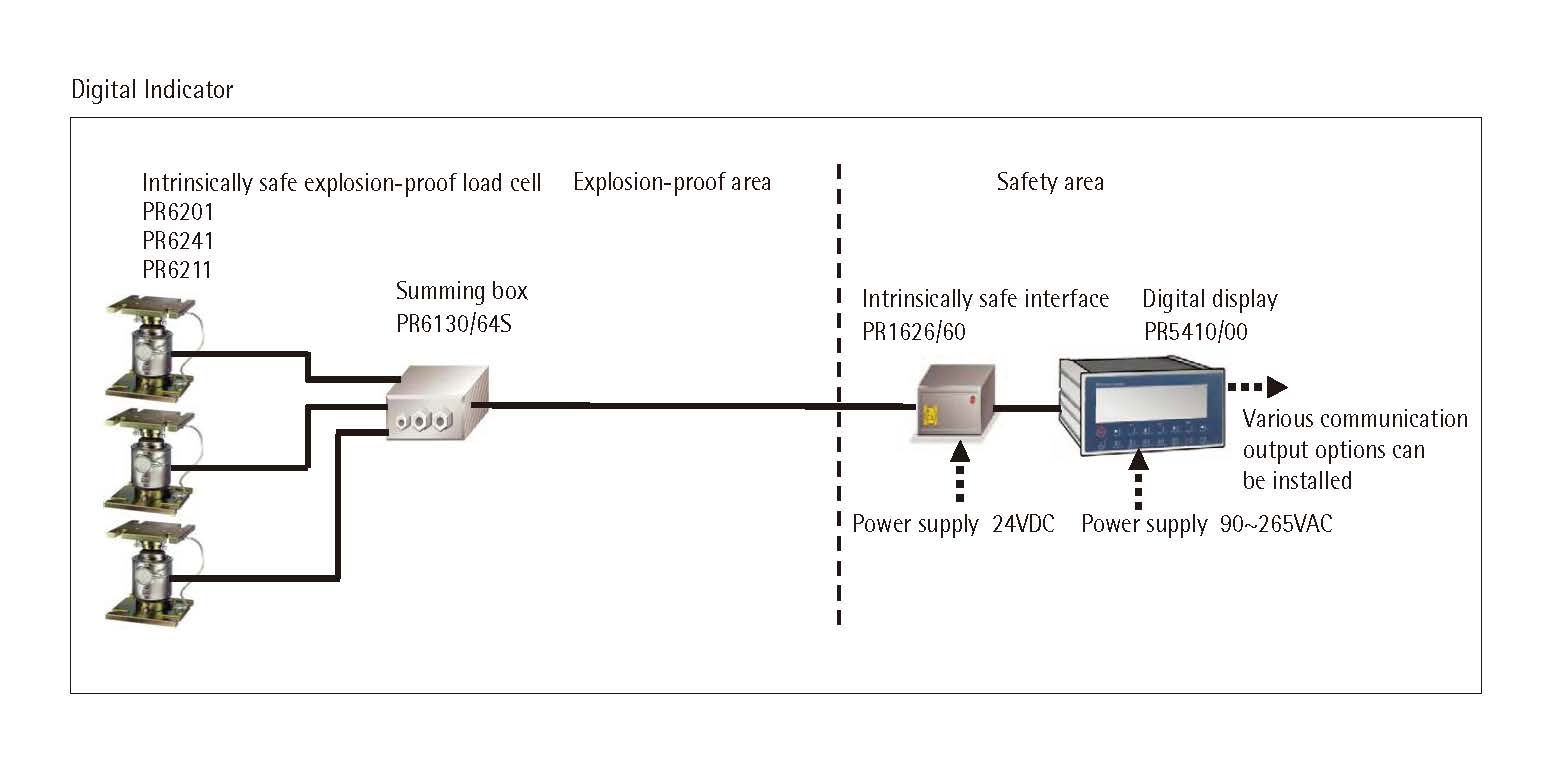

Digital Indicators
