Load cell Applications

Minebea Intec Products Applications

Both our tank scales and platform scales adopt intrinsically safe explosion-proof systems.

Sort
Parts Product image Outline
PR1626pr5230_580x400.png●Intrinsically safe explosion-proof interface developed especially for load cells
●Load cell output changes due to temperature effects are minimal,enabling high accuracy measurement
●Dedicated interface for load cells installed in hazardous locations
●The PR1626/60 can connect up to four 650Ω load cells
●The PR1626/61 can be connected to load cell type explosion-proof scales and connect up to eight 650Ω load cells
●W&M Approval OIML R76 class Ⅲ

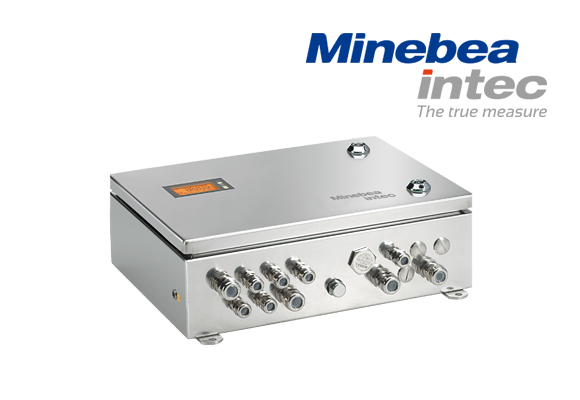

PR5230pr5230_580x400.png●Stainless steel housing:IP66
●Ethernet/Modbus TCP service interface equipped as standard(calibration/setting enabled via the service interface)
●RoHS compliant
●Input/Output 3 contacts equipped as standard
PR5220pr5220_580x400.png●TCP/IP connection,calibration and setting can be configured via PC
●High internal resolution:4,800,000
●External display 10,000e(OIMLR76 compliant)
●High accuracy analog output,0/4-20mA
●RS485/422 outputs available
●24 VDC power supply
●Waterproof IP20,DIN rail mountable

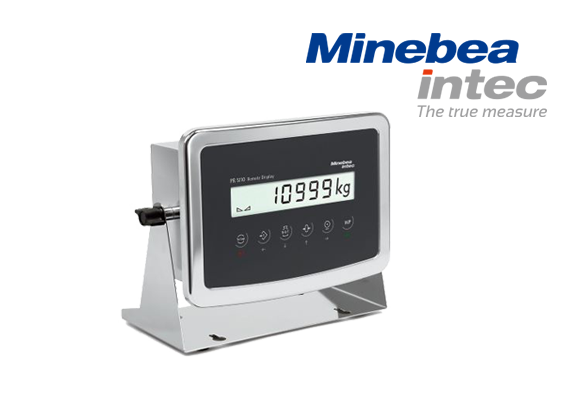

PR5110pr5110_580x400.png●Serial communication means there is no display error relative to the indicator
●Selectable between board mounting types and wall/tabletop mounting types
●Up to 8 indicator units can be connected

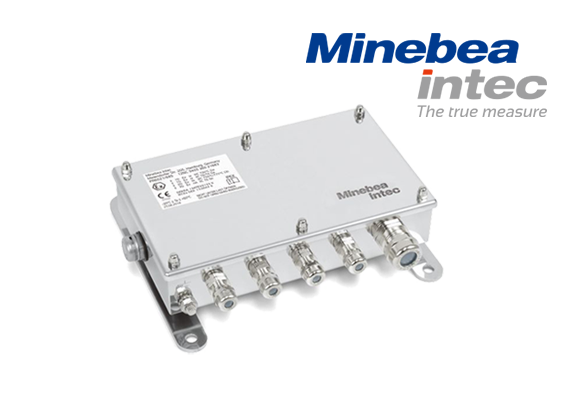

PR6130pr6130_580x400.png●Up to 4 load cell units can be connected
●No problems even if jet spray adheres to the board surface
●Flame arrestor equipped as standard
