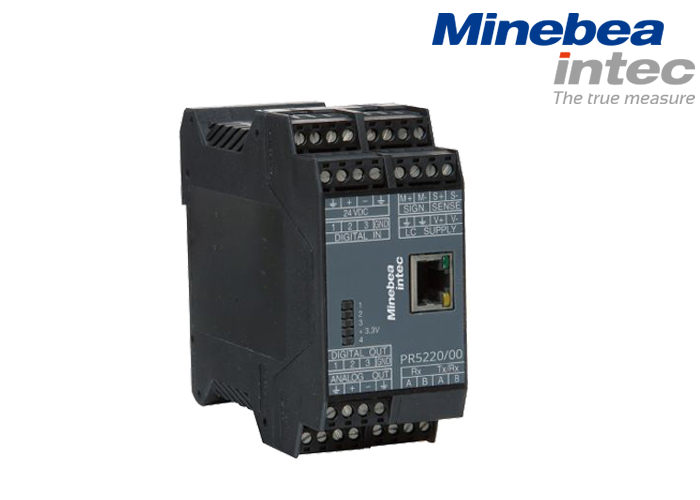

PR5220

  • Minebea Intec

Features

●TCP/IP connection,calibration and setting can be configured via PC
●High internal resolution:4,800,000
●External display 10,000e(OIMLR76 compliant)
●High accuracy analog output,0/4-20mA
●RS485/422 outputs available
●24 VDC power supply
●Waterproof IP20,DIN rail mountable

Specification

Specification name Specification contents
Class OIML R 76; Class Ⅲ 10000e acc. To EN45501
Non-linearity <0.002%(Typ.)
Load cell Nominal supply voltage DC12V max160mA, with remote sensing function, max 8 x 650Ω load cells (min 75Ω), max 4 x 350Ω load cells
Temperature effects Zero: <0.02uV/K RTI <=±0.004%/10K at 1mV/V, Span: <+/-2ppm/K
Input signal range 0~36mV
Internal resolution max 7,500,000 counts at 3mV/V
Power supply DC 24V
Power supply tolerance -15%~10%
Operating humidity range <95%RH
Class of protection IP30 (DIN40050)

Item list

Parts No. Power consumption Weight
[kg]
Dimensions(W)
[mm]
Dimensions(D)
[mm]
Dimensions(H)
[mm]
Specification sheet Instruction Manual
