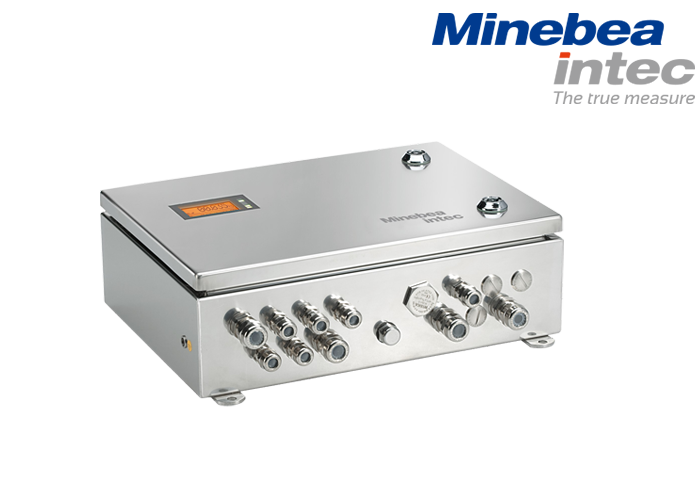

PR5230
- Minebea Intec
Features
●Stainless steel housing:IP66
●Ethernet/Modbus TCP service interface equipped as standard(calibration/setting enabled via the service interface)
●RoHS compliant
●Input/Output 3 contacts equipped as standard
Specification
| Specification name | Specification contents |
|---|---|
| Class | OIML R 76; Class Ⅲ 10000e acc. To EN455 |
| Non-linearity | <0.003%(Typ.) |
| Load cell Nominal supply voltage | DC12V 160mA, with remote sensing function |
| Temperature effects | Zero: <0.05uV/K RTI, Span: <±2.5ppm/K |
| Input signal range | 0～36mV |
| Internal resolution | max 7,500,000 counts at 3mV/V |
| Conversion speed | 5～1600ms |
| Power supply | L0: 100-230VAC / L8: 24VDC |
| Operating humidity range | <95%RH |
| Class of protection | IP66 equivalent |
| Option | PR5230/22: Cable summing board (max. 4 points) |
| Option1 | PR5230/06: Analog specification |
| Option2 | PR1721/41:Profibus-DP |
| Option3 | PR1721/42:Interbus-S |
| Option4 | PR1721/44:DeviceNet |
| Option5 | PR1721/45:CC-Link |
| Option6 | PR1721/46:Profinet |
| Option7 | PR1721/47:Ethernet IP |
Item list
| Parts No. | Weight [kg] |
Gross Weight [kg] |
Dimensions(W) [mm] |
Dimensions(D) [mm] |
Dimensions(H) [mm] |
Specification sheet |
|---|---|---|---|---|---|---|
| PR5230 | About6 | 7 | 350 | 250 | 120 | 351PR5230.pdf |

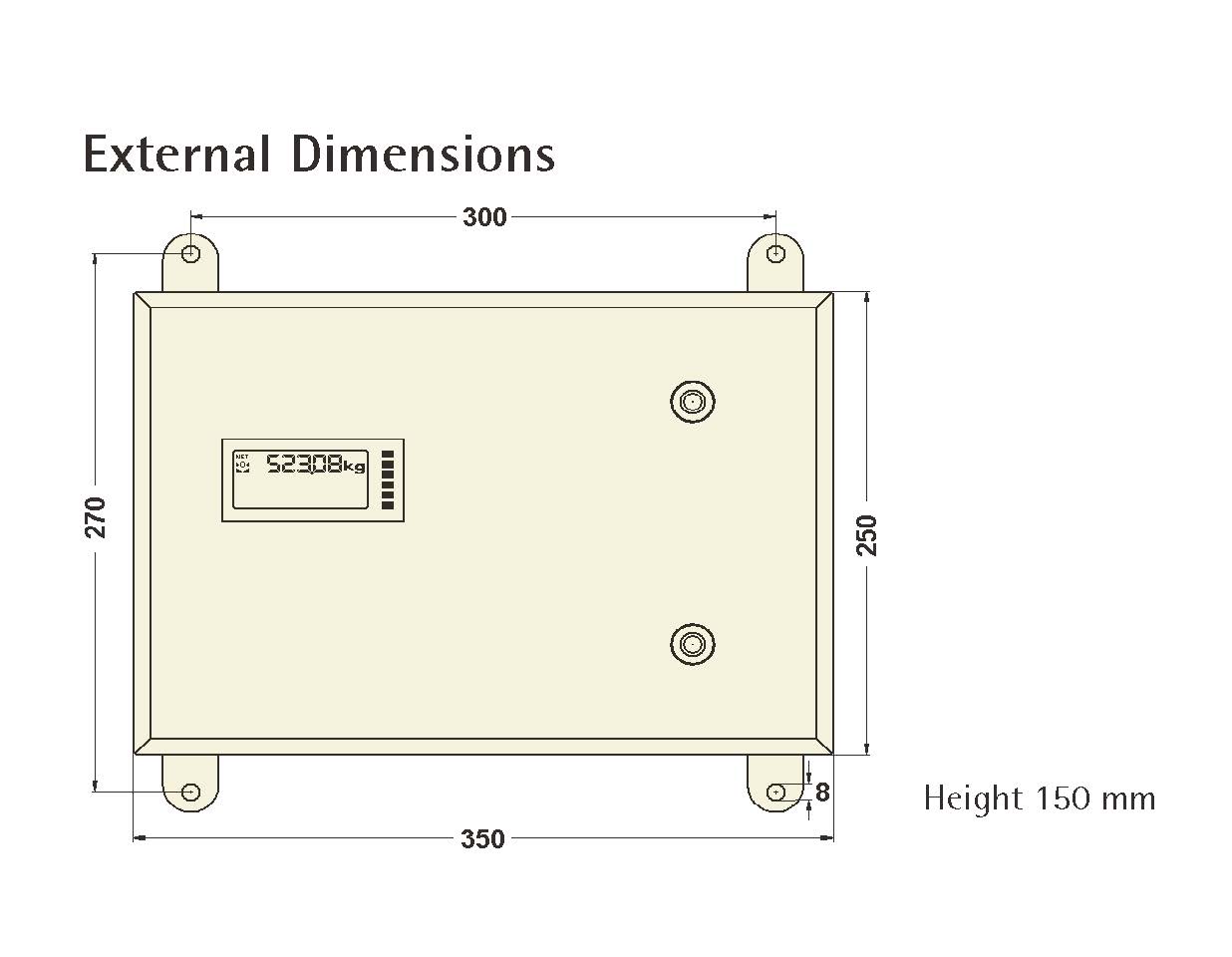

External view
