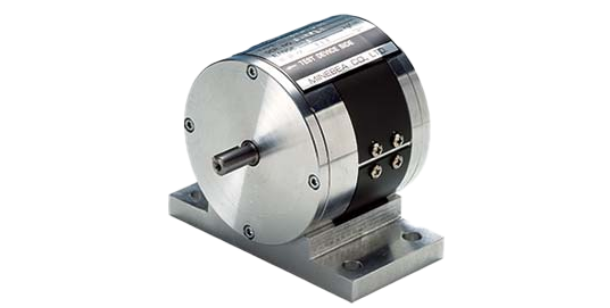

Low capacity torque transducer TMBN series

Slip ring method torque transducer.

Features

・Suitable for the detection of a minute torque.
・Small size and light weight.

  • scroll

    Specification name

    Specification contents
    Rated capacity ±20 N・cm ~ ±300N・cm
    Safe overload 120 %R.C.
    Rated output 1 mV/V±0.2 mV/V
    Non-linearity 0.5 %R.O.
    Hysteresis 0.5 %R.O.
    Repeatability 0.5 %R.O.
    Excitation, recommended 5 V or less
    Zero balance ±0.2 mV/V
    Input resistance 700 Ω±7 Ω
    Output resistance 700 Ω±7 Ω
    Insulation resistance 500 MΩ or more (50 VDC) (between bridge and main body)
    Temp. range, safe 0 ℃ ~ 60 ℃
    Temp. effect on zero 0.5 %R.O./10 ℃
    Maximum rotation 2 000 rpm
    Standard operating rotation 500 rpm
    Class of protection IP40 or equivalent
    Cable (Accessories) φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminallugs at the cable end.

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Parts No.

    Rated capacity
    [N･cm]

    Rated output
    [mV/V]

    Tolerance of rated output
    [mV/V]

    Maximum rotation speed
    [rpm]

    Cable

    CAD files[DXF]

    3D CAD files [STEP]

    Weight(Approx. )
    [kg]
    TMBN-20NC ±20 ±1 ±0.2 2000 φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminallugs at the cable end. tmbn.dxf TMBN-20NC.STEP 0.6
    TMBN-50NC ±50 ±1 ±0.2 2000 φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminallugs at the cable end. tmbn.dxf TMBN-50NC.STEP 0.6
    TMBN-100NC ±100 ±1 ±0.2 2000 φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminallugs at the cable end. tmbn.dxf TMBN-100NC.STEP 0.6
    TMBN-200NC ±200 ±1 ±0.2 2000 φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminallugs at the cable end. tmbn.dxf TMBN-200NC.STEP 0.6
    TMBN-300NC ±300 ±1 ±0.2 2000 φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminallugs at the cable end. tmbn.dxf TMBN-300NC.STEP 0.6

  • Instruction Manual
