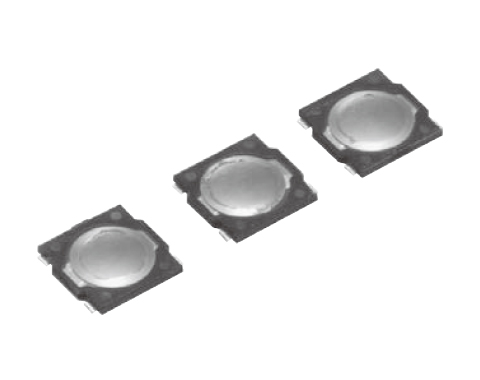

We offer compact and thin type push switches with excellent click feel for small electronic devices.
Wide variety of tactile switches are available, including dustproof and waterproof types.
Features
1. Original terminal structure reduces the mounting area.
2. High reliability thanks to the dustproof design.
3. Good feeling from the wider pressing range.
-
-
Mobile Phones, Smartphones, Digital Cameras, Game Machines and etc.
-
Rating (Resistive load) DC15V, 20mA Contact Resistance 1Ω or less Insulation resistance 10MΩ or more Withstand Voltage 1 minute at AC 100V Life SOG-152ANT : 1,000,000 times
SOG-154ANT : 500,000 timesPcs/Reel SOG-152ANT : 10,000
SOG-154ANT : 10,000
-

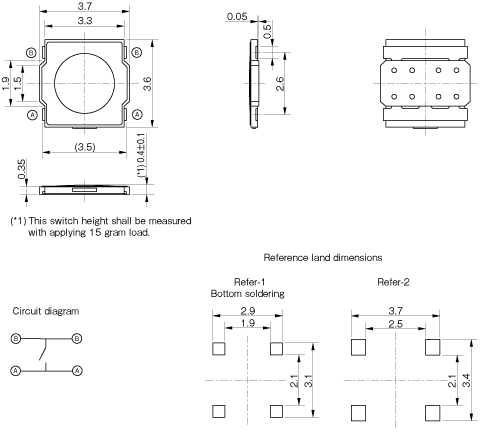

Unit:mm
-
*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications. -
