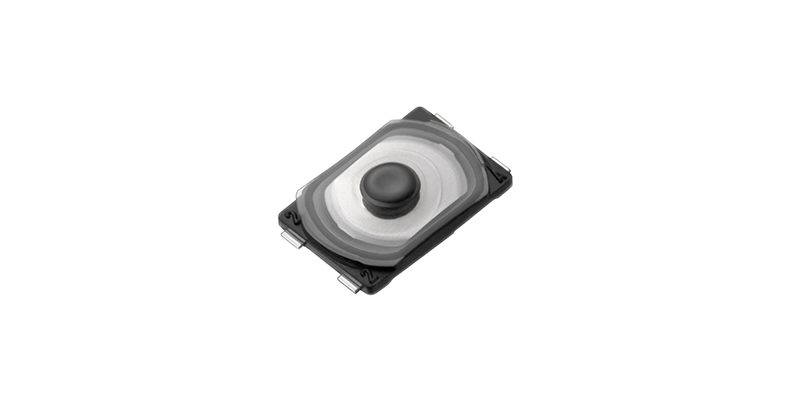

Tactile Switches Waterproof Small Type Tactile Switch

STU Series

Features

1. IP68 water resistance and dust resistance.
2. Actuator on the center of spring prevents deterioration of operating feel due to misalignment between switch and knob.
3. Sharp click feel and long operating life.

Application

1. Small electrical devices such as Mobile phones, Smart phones, Wearable devices.
2. The equipment to use in outdoor, use in dusty place.

Specifications

Rating (Resistive load) DC15V, 20mA (maximum)
DC2V, 10μA (minimum)
Contact Resistance 500mΩ or less
Life STU-057A23AC : 500,000 times
STU-060A30AX : 300,000 times
Pcs/Reel STU-057A23AC : 20,000
STU-060A30AX : 20,000
Water Resistance Protective Resistance : IP68

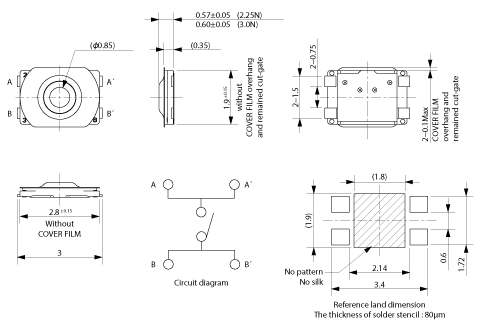

Overall View

Unit:mm

NOTE

*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
