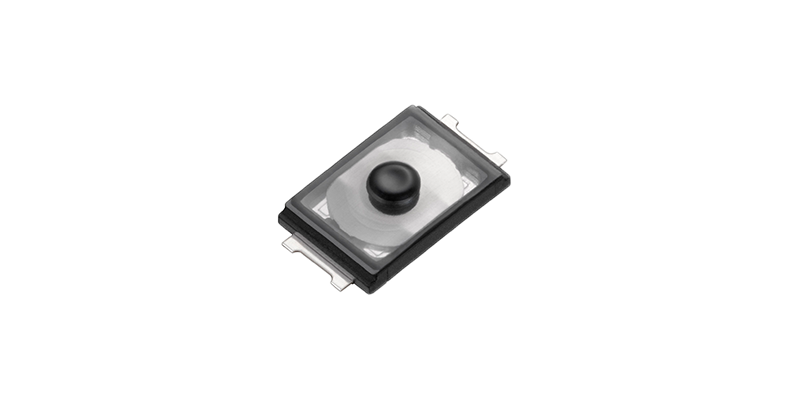

Tactile Switches Small Type Tactile Switches

STO Series

Features

1. Small size and mounting area (Width 2.0mm).
2. Good feeling with the actuator.
3. Suitable for high load support (3.3N)
4. IPX8 water resistance.

Application

Mobile Phones, Smartphones, Digital Cameras, Game Machines and etc.

Specifications

Rating (Resistive load) DC15V, 20mA
Contact Resistance 500mΩ or less
Insulation resistance 50MΩ or more
Withstand Voltage 1 minute at AC 100V
Life STO-060A16AB : 500,000 times
STO-060A24AB : 500,000 times
STO-060A33AC : 300,000 times
Pcs/Reel STO-060A16AB : 20,000
STO-060A24AB : 20,000
STO-060A33AC : 20,000
Water Resistance Protective Resistance : IPX8

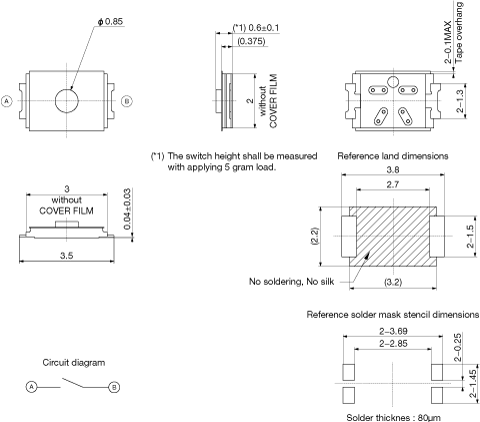

Overall View

Unit:mm

NOTE

*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
