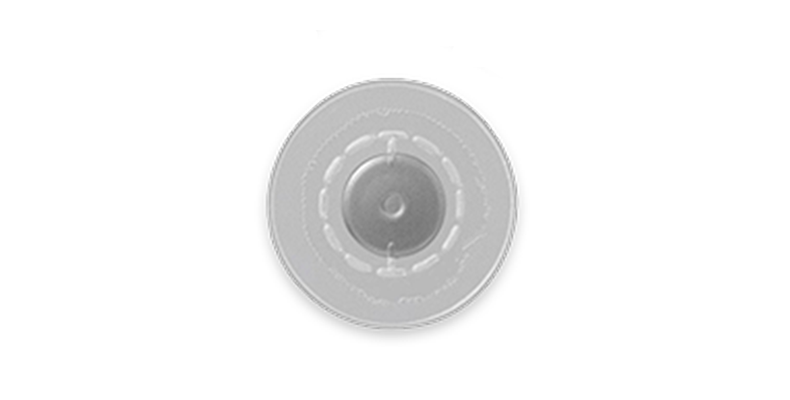

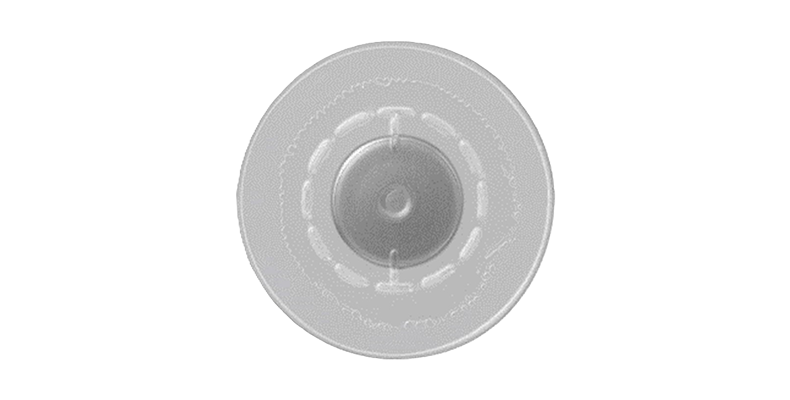

Switch sheets with click springs mounted on adhesive sheets, which can be directly attached to PWB to realize thin tactile feel switches.
We can design diameter and layout of click springs, sheet sizes, layer structures, characteristics, etc., to meet customer necessities.
Features
1. Achieved a nice feeling and stable electrical specification.
2. Achieve low profile equipment by using SBH series.
3. Provide product lineup that has a variety of switch sheet types to help make the set thinner. These type of switches have the metal dome mounted on the cover tape.
-
-
1. For small, portable AV equipment operating switches.
2. For mobile phones, smartphones, PDAs, input key switches. -
Rating (Resistive load) DC 12V 0.1A Contact Resistance 1Ω or less Insulation resistance 100MΩ or more Withstand Voltage 1 minute at 100V AC Operating Force 1.0N to 3.8N
(Ø2.4, Ø3.0, Ø3.0×2, Ø4.0, Ø4.0×2.8, Ø5.0, Ø6.0)Life 200,000 to 1,000,000 times
-
*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications. -
