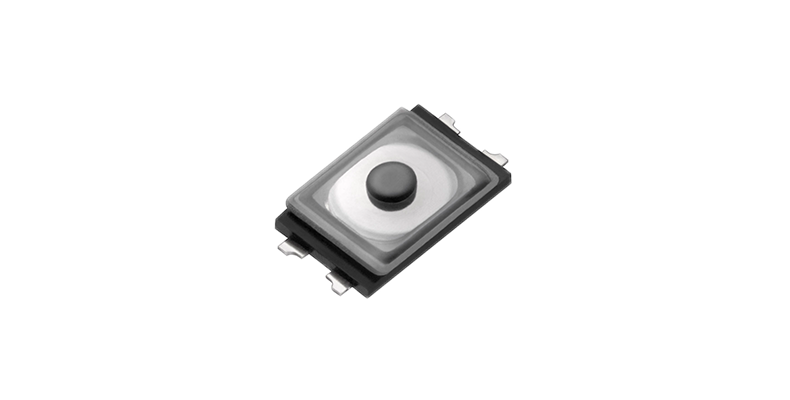

We offer compact and thin type push switches with excellent click feel for small electronic devices.
Wide variety of tactile switches are available, including dustproof and waterproof types.
Features
1. Ultra small size. (2.5×1.6mm)
2. Good feeling with the actuator.
3. High reliability with the small, thin, and dustproof design.
4. IP68 water resistance.
-
-
Mobile Phones, Smartphones, Digital Cameras, Game Machines and etc.
-
Rating (Resistive load) DC15V, 20mA Contact Resistance 1Ω or less Insulation resistance 10MΩ or more Withstand Voltage 1 minute at AC 100V Life STR-055A12AY : 500,000 times
STR-055A16AY : 500,000 times
STR-055A24AY : 200,000 timesPcs/Reel STR-055A12AY : 25,000
STR-055A16AY : 25,000
STR-055A24AY : 25,000Water Resistance Protective Resistance : IP68
-

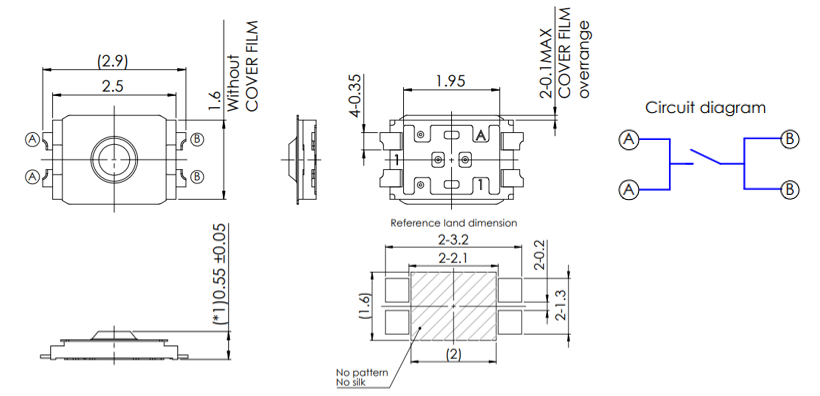

Unit:mm
-
*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications. -
