Power inductors CFS Series

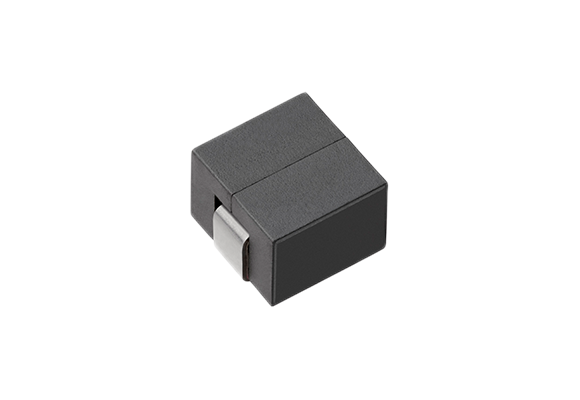

CFS-676850NX

  • RoHS
  • AEC-Q200
  • Shielded structure

Outline

Heigh current inductor of DC/DC converter

Features

1. High saturation current noise filter
2. Produces low heat due to low DC resistance
3. Low Profile Product

Applications

For DC-DC converter power supply(ABS/ESP, Server).

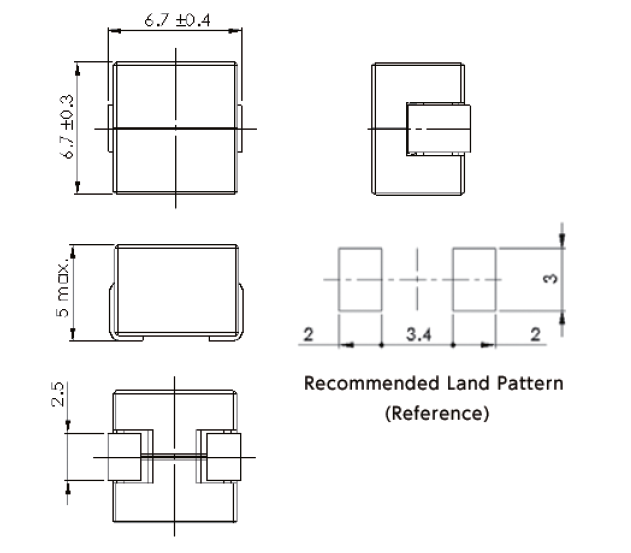

Dimensions

mm

Specifications

Size(W)
[mm]
Size(D)
[mm]
Length(H) Max
[mm]
Stamp Inductance
[micro H]
Inductance Tolerance
lower limit
[%]
Inductance Tolerance
upper limit
[%]
Inductance Test Freq.
[KHz]
DC Resistance
[m OHM]
Rated DC
CurrentL=-20 percent
[A]
Rated DC
Current deltaT=40K
[A]

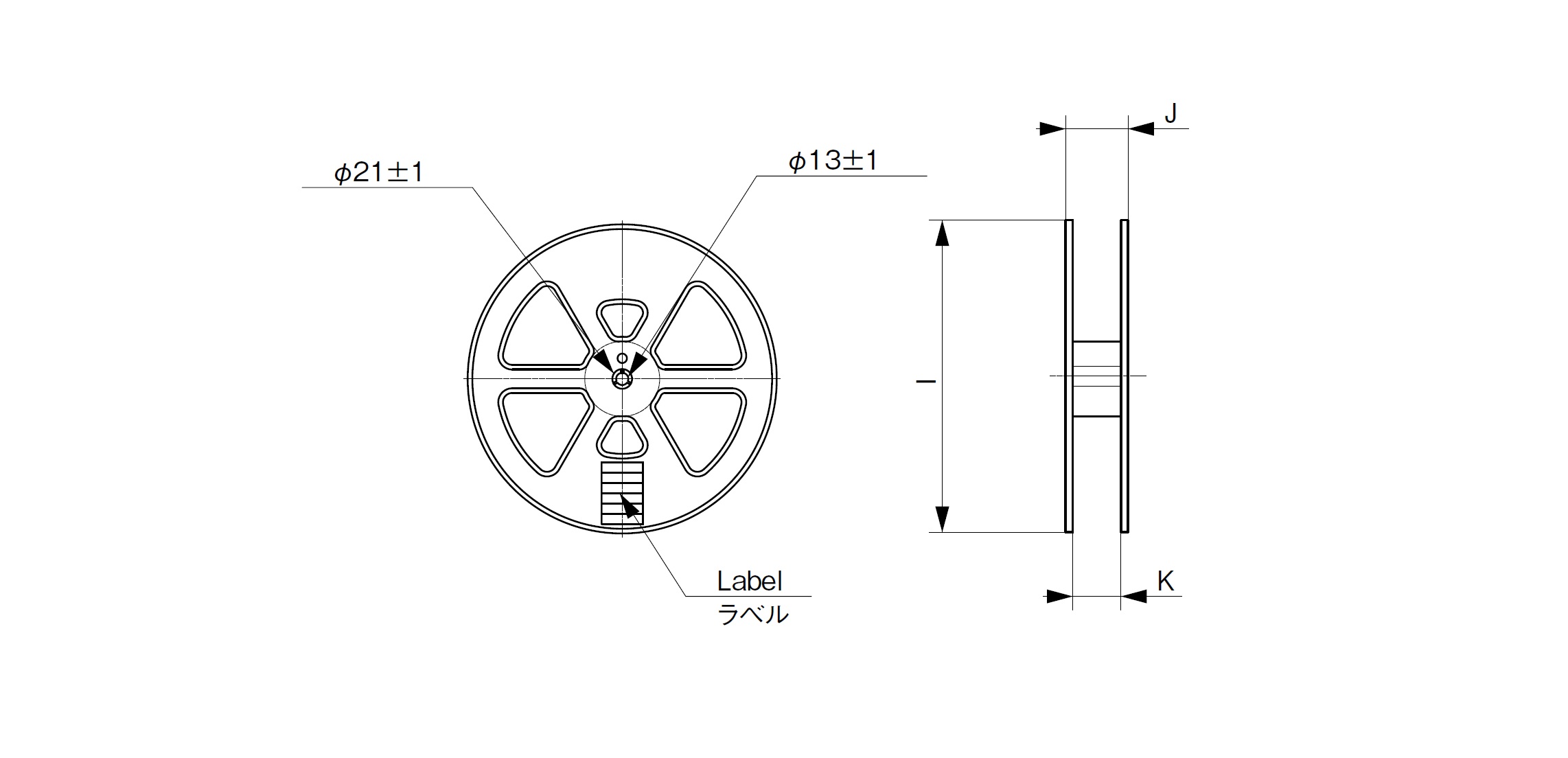

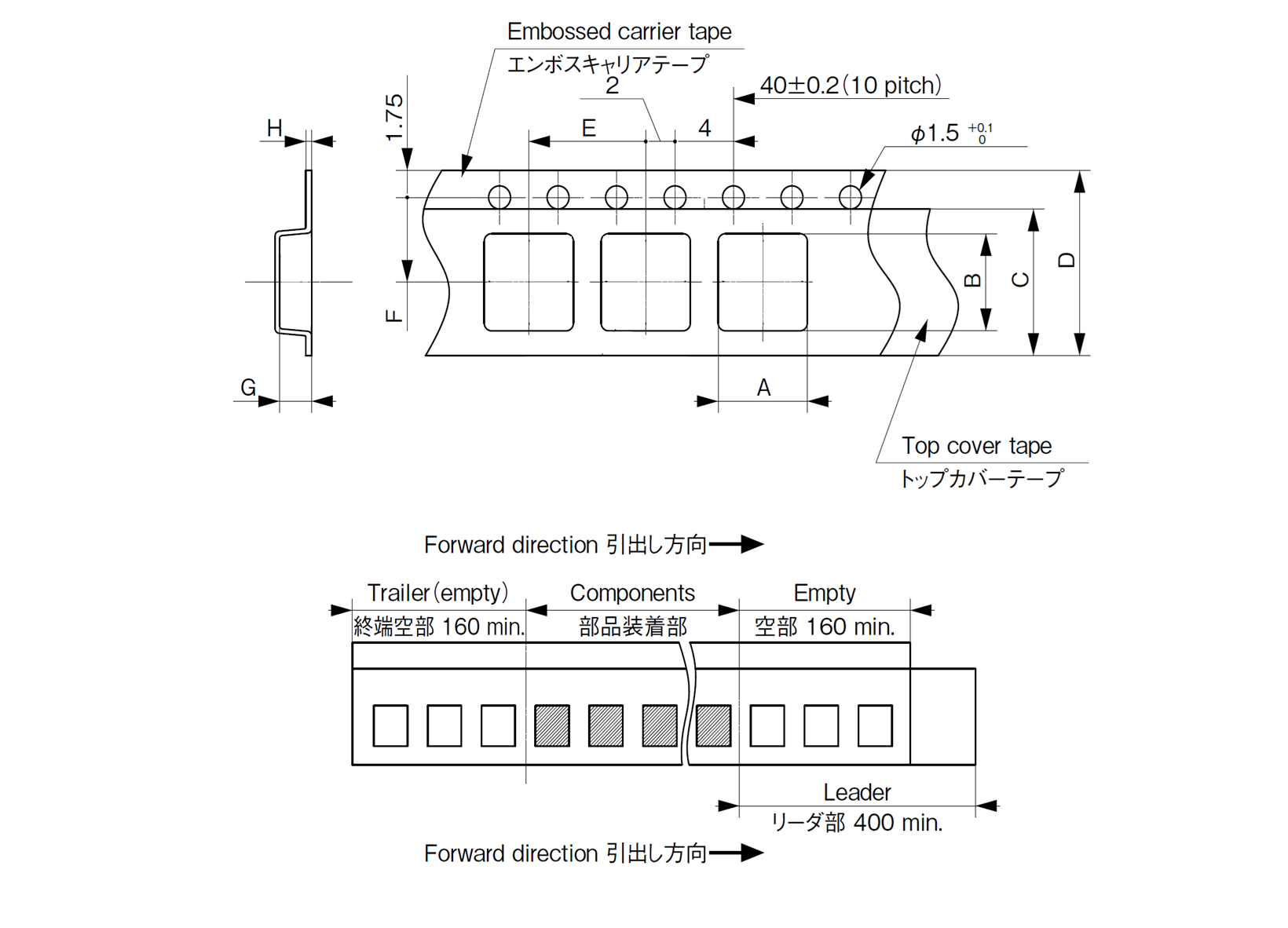

Package Dimension
