11925PB

AC fan motors driven by AC voltage rotate fans to cool the inside of industrial machines and other equipment instruments and exhaust the heat outside. AC fan motors use ball bearings manufactured in-house by Minebea.

Notes: The Air Flow in the table shows the average values in free air.

General Specifications

Motor Structure:Shaded Pole Induction Motor
Motor Protection:Impedance Protection
Insulation Resistance:Min 100M ohm by DC 500V Megger
Dielectric Withstand Voltage:AC1800V 3s
Allowable Ambient Temperature Range:
-10deg.C - +70deg.C (Operating)
-40deg.C - +70deg.C (Storage)
non-condensing environmentOld model name:4710PS

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Product No

    Nominal Voltage
    [V]

    Frequency
    [Hz]

    Starting Voltage
    [V]

    Current
    [A]

    Input Power
    +10%/-20%
    [W]

    Speed
    [min-1]

    Max. Air Flow
    [m3/min]

    Max. Air Flow
    [CFM]

    Max. Static Pressure
    [In H2O]

    Noise
    [dB]

    Mass
    [g]
    11925PB-A0L-EA- 00 100 50 65 0.220 14.0 2300 1.80 64.3 0.16 34.0 360
    11925PB-A0L-EA- 00 100 60 65 0.180 11.0 2700 2.00 71.4 0.16 38.0 360
    11925PB-A1L-EA- 00 115 50 75 0.190 14.0 2300 1.80 64.3 0.16 34.0 360
    11925PB-A1L-EA- 00 115 60 75 0.160 11.0 2700 2.00 71.4 0.16 38.0 360
    11925PB-B0L-EA- 00 200 50 130 0.110 14.0 2300 1.80 64.3 0.16 34.0 360
    11925PB-B0L-EA- 00 200 60 130 0.090 11.0 2700 2.00 71.4 0.16 38.0 360
    11925PB-B2L-EA- 00 220 50 175 0.100 14.0 2300 1.80 64.3 0.16 34.0 360
    11925PB-B2L-EA- 00 220 60 175 0.080 11.0 2700 2.00 71.4 0.16 38.0 360
    11925PB-B3L-EA- 00 230 50 175 0.100 14.0 2300 1.80 64.3 0.16 34.0 360
    11925PB-B3L-EA- 00 230 60 175 0.090 11.0 2700 2.00 71.4 0.16 38.0 360
    11925PB-B4L-EA- 00 240 50 175 0.100 15.0 2300 1.70 60.7 0.16 34.0 360
    11925PB-B4L-EA- 00 240 60 175 0.080 13.0 2700 2.00 71.4 0.16 38.0 360

    Rotation: Counterclockwise as seen from the label side
    Airflow Outlet: Label side
    *1: Average Values in Free Air
    *2: Maximum Values in Free Air
    *3: Minimum Values in Free Air

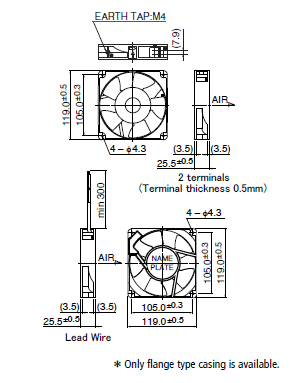

    Outline

    Material

    Casing:Aluminum (Black Painting)
    Impeller:Plastic (Black) UL94V-0
    Bearing:Ball Bearing
    Terminal:Faston #110 or Equiv
    * Lead Wire type is also available.

    Lead Wire:UL3266, AWG22

    Characteristic Curves

  • 25deg.C 100,000 Hours *Failure Rate 10% (L10 Life)
