MR sereis IGBT middle current range

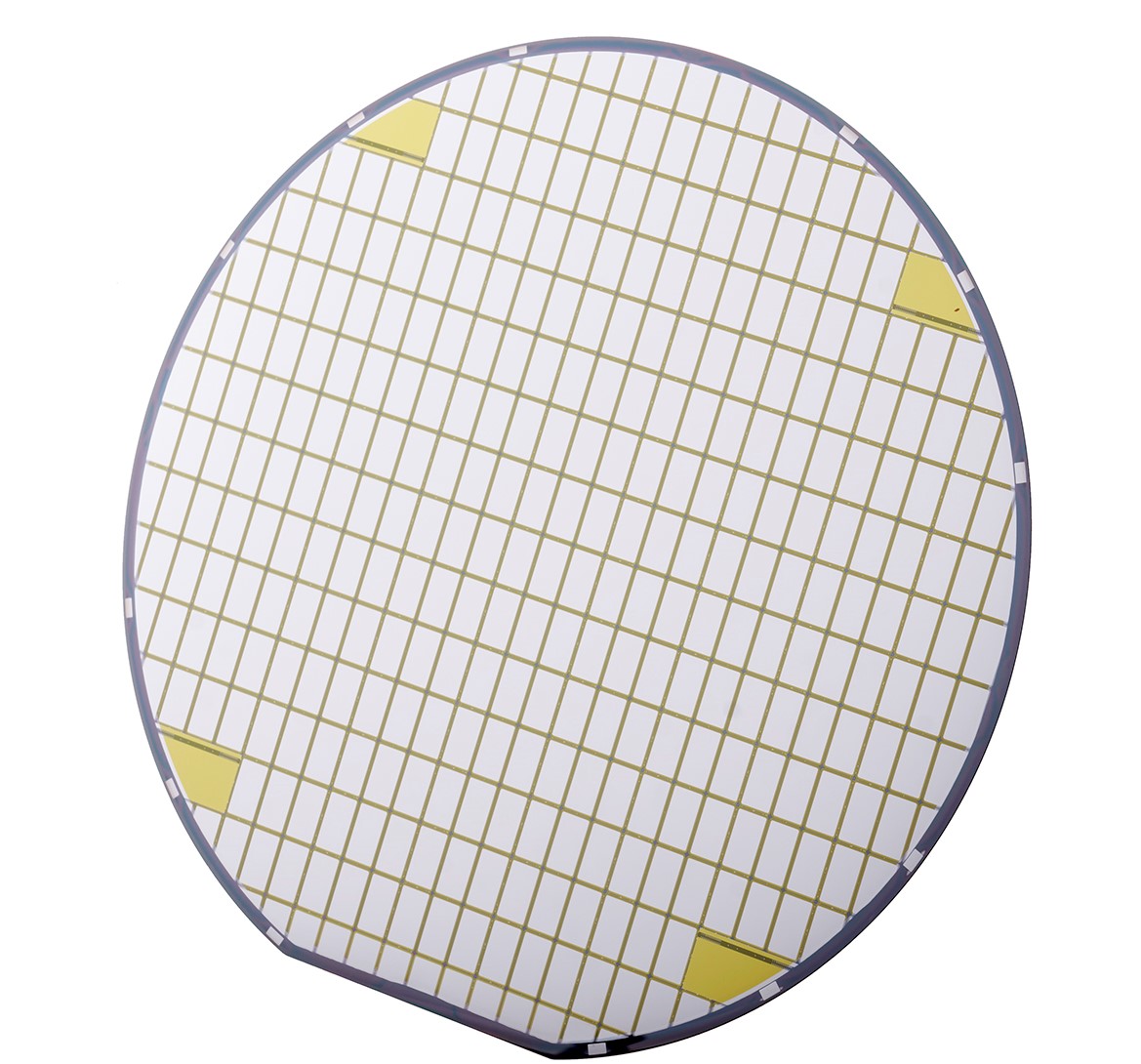

Product image of MR sereis IGBT middle current range | IGBT (Insulated Gate Bipolar Transistor)

Field Stop Trench gate IGBT：First Technology（Our Company）

Download

MR sereis IGBT middle current range Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Associated Data

Gate-Emitter voltage
VCES
[V]

Collector current
IC
[A]

Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
typical limit
[V]

Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
upper limit
[V]

Gate Voltage
VGES　
[V]

Gate-Emitter threshold voltage
VGE(th)
lower limit
[V]

Gate-Emitter threshold voltage
VGE(th)
upper limit
[V]

Die size
X
[mm]

Die size
Y
[mm]

Junction temperature
Tj
[deg.C]
MMJ65A0A00xx PDF product catalog 650 100 1.50 1.80 -30 to 30 5.00 6.80 7.80 7.80 -40 to 175
MMJ65A5A00xx PDF product catalog 650 150 1.50 1.80 -30 to 30 5.00 6.80 9.30 9.30 -40 to 175
MMJ65B0A00xx PDF product catalog 650 200 1.50 1.80 -30 to 30 5.00 6.80 10.60 10.60 -40 to 175
MMJ65A0A02xx PDF product catalog 650 100 1.30 1.60 -30 to 30 5.00 6.80 7.80 7.80 -40 to 175
MMJ65A5A02xx PDF product catalog 650 150 1.30 1.60 -30 to 30 5.00 6.80 9.30 9.30 -40 to 175
MMJ65B0A02xx PDF product catalog 650 200 1.30 1.60 -30 to 30 5.00 6.80 10.60 10.60 -40 to 175
MMJC575A01xx PDF product catalog 1250 75 1.85 2.15 -30 to 30 5.00 6.80 7.90 7.90 -40 to 175
MMJC5A0A01xx PDF product catalog 1250 100 1.85 2.15 -30 to 30 5.00 6.80 8.80 8.80 -40 to 175
MMJC5A5A01xx PDF product catalog 1250 150 1.85 2.15 -30 to 30 5.00 6.80 10.50 10.50 -40 to 175
MMJC5B0A01xx PDF product catalog 1250 200 1.85 2.15 -30 to 30 5.00 6.80 11.90 11.90 -40 to 175
