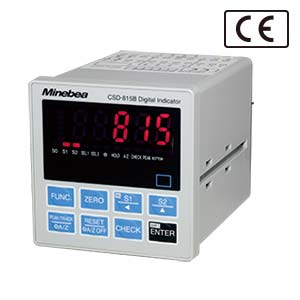

Digital Indicator CSD-815B

Discontinued Products

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Digital indicator for the strain gage transducers 96 mm x 96 mm.
・Equipped with peak hold function.
・Equipped with CC-Link interface.
・Protection grade : IP65
・CE mack applied.

Alternative

Digital Indicator CSD-815C

scroll

Specification name	Specification contents
Bridge power supply	5 VDC±0.25VDC within 60 mA (Changeable to 2.5 VDC)
Input range	F.S. setting is available with the input range from 0.4 mV/V to 3.1 mV/V.(When the bridge power supply is 5 VDC)
Output range	±5 VDC Load resistanceis 5 kΩ or more. (F.S. setting is available by function)
Output times	Changeable to 4 times/s,20 times/s, 50 times/s or 100 times/s.(Synchronous with display rate.)
Output resolution	Approx. 1/12 000
Zero adjustment range	±2.4 mV/V
Non-linearity	Display 0.01 %F.S., Output 0.05 %F.S.
Input noice	±0.6 μVp-p or less (With a default setting of digital filter andstabilized filter)
Input filter	2 Hz (Changeable to 10 Hz, 100 Hz or 2kHz)
A/D sampling speed	100 times/s
CHECK	Approx. 0.3 mV/V (Setting with the interval of about 0.1 mV/V is available in the range fromapprox.0.1 mV/V to 1.5 mV/V.)
Load display	7 segment red LED with 17 mm character’s height
Display range	-99 999 ~ 99 999
Display times	4 times/s (Changeable to 20 times/s, 50 times/s or 100times/s)
External control function	ZERO, PEAK/TRACK/A/Z, HOLD, RESET/A/ZOFF, SEL1, SEL2
Comparator function	Set value ：－99 999～99 999 -99 999 ~ 99 999 Set quantity ：3 points of S0, S1 and S2 "S0" is set by function command. Conversion times ofcomparator ："Changeable to 4 times/s, 20 times/s, 50 times/s or 100times/s (Syncronous with display times)During the display of set value, process of measurementand also process of comparator are interrupted. "
Various functions	Zero tracking, Degital filter, Stabilization filter, Change of HOLD target, Sheet key lock, Selection of Peak mode, Chenge of analog output target.
Operating temp. /humidity range	Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less(Non condensing)
Power supply voltage	100 VAC ~ 240 VAC 50/60Hz 100 VAC ~ 240 VAC 50/60Hz (permissible variable range from 85 VAC to 264 VAC)
Power consumption	Approx. 9 VA (withoutoptions, at 100 VAC) Approx.18 VA at maximum (with options, at 100VAC ~ 240 VAC)
Outline dimensions (WxHxD)	96 mm x 96 mm x 129.5mm (excludes protruding parts)
Weight	Approx. 500 g (without options)
Protection code	IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed.

Instruction Manual
- No.EN294-1434
- Instruction manual No.294-1135 for CC-Link interface
Specification
- No.EN382815B
CAD
- csd815b.dxf
Software/Firmware
- CSP+ file (CC-Link Family System Profile Plus)file 0x0210_CSD-815B_1.00_ja.zip
- Current output
- BCD output
- RS-232C interface
- RS-422/485 interface
- CC-Link interface
