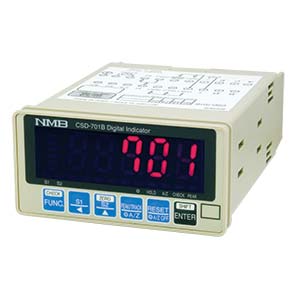

Digital indicator CSD-701B

Discontinued Products

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Compact size 48 mm x 96 mm
・Peak Hold funciton is available as an option.
・Up to 4 strain gage transducers may be connected.
・BCD output as an option.
・Protection grade : IP65

Alternative

Digital Indicator　CSD-701C

scroll

Specification name	Specification contents
Bridge power supply	5 VDC±0.25VDC within 60 mA (changeable to DC2.5 VDC）
Input range	F.S. setting is availablewith the input range from 0.4 mV/V to 3.1 mV/V.(When the bridge power supply is 5 VDC)
Output range	5 VDC Load resistanceis 5 kΩ or more.(F.S. setting is available by function)
Output times	Changeable to 4 times/s or 20 times/s (Synchronous with display rate)
Output resolution	Approx. 1/10 000
Zero adjustment range	-0.3 mV/V ~ 2.4 mV/V
Non-linearity	Display 0.05 %F.S.,Output 0.05 %F.S.
Temperature efficient	Zero point ±1 μV/℃,Sensitivity ±0.02 %F.S./℃ (Input conversion, During F.S. setting at the inputfrom 0.5 mV/V to 3.1 mV/V)
Input noice	±1 μVp-p or less (At the default setting of the digital filter andthe stabilized filter)
Input filter	1 Hz (At the "0"setting of the digital filter and the stabilizedfilter)
A/D sampling speed	20 times/s
Load display
Display range	-9 999 ~ 99 999
Display times	4 times/s (Changeable to 20 times/s)
Decimal point display	Changeableto No display, 10¹,10², 10³,10⁴
External control function	ZERO, HOLD, PEAK/TRACK/A/Z, RESET/A/ZOFF
Comparator function	Set value ：-99 999 ~ 99 999 Set quantity ：2 points of S1 and S2 Conversion times ofcomparator ：Changeable to 4 times/sor 20 times/s (Synchronous with display rate) Contact output function ：2 points of S1 and S2
Operating temp. /humidity range	Temperature 0 ℃ ~50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	100 VAC ~ 240 VAC50/60 Hz (Permissible variable range 85 VAC ~ 264VAC)
Power consumption	Approx. 11 VA (withoutoptions, at 100 VAC) Approx.14 VA at maximum(with options, at 100 VAC ~ 240 VAC)
Outline dimensions (WxHxD)	96 mm x 48 mm x 120 mm (excludes protruding parts)
Weight	Approx. 0.3 kg (without options)
Protection code	IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed.
