IS Series

Minebea Intec

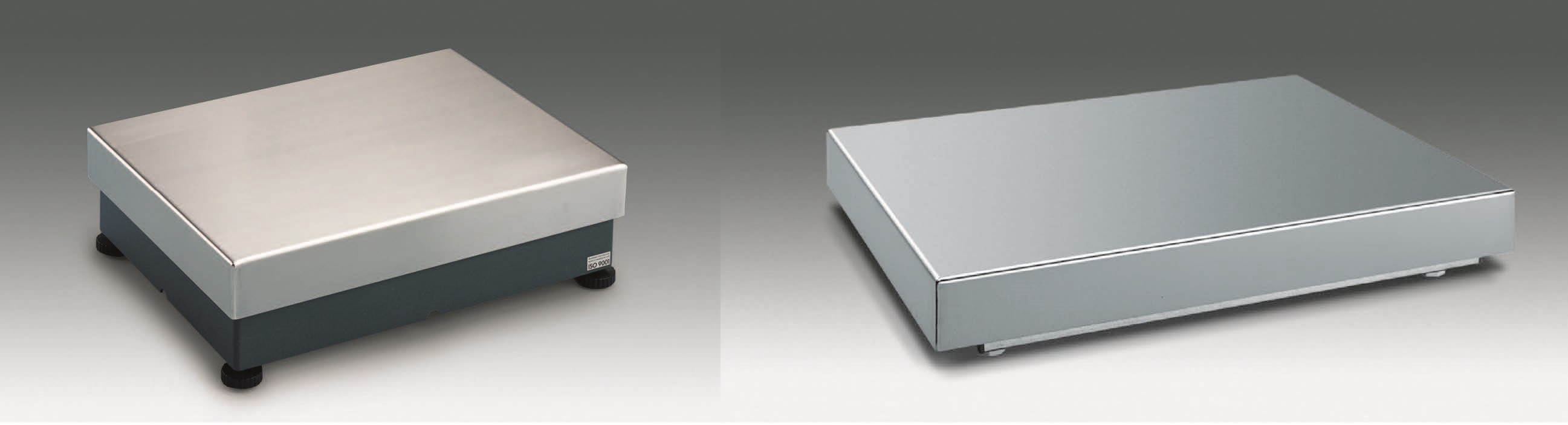

High-precision electromagnetic platform scales with aluminum monolithics.

Features

・Weighing range：16kg to 300kg
・Select among 3 Types of indicators based on the application
・Max.display resolution：1/640,000
・Electromagnetic type adopted for high accuracy
・Built-in weighing part and display part
・Main unit cable length 16/34/64kg: 3m (6m for ISFEG only),150/300kg: 6m

scroll

Specification name	Specification contents	Specification contents2	Specification contents3	Specification contents4	Specification contents5	Specification contents6	Specification contents7
Item	ISEDE-16-H	ISEDE-34-H	ISEDE-64-H	ISEDE-64-S	ISFEG-64-S	ISIGG-150-H	ISIGG-300-H
repetitive	≦±0.05g	≦±0.07g	≦±0.1g	≦±0.3g	≦±0.5g	≦±1g	≦±2g
linearity deviation	≦±0.2g	≦±0.2g	≦±0.3g	≦±0.5g	≦±2.4g	≦±4g	≦±8g
Class of protection	IP65	IP65	IP44	IP65	IP67	IP67	IP67
Stability time	1.5s (standard)	1.5s (standard)	1.5s (standard)	1.5s (standard)	1.5s (standard)	1.5s (standard)	1.5s (standard)
Operating temperature range	0～40℃	0～40℃	0～40℃	0～40℃	0～40℃	0～40℃	0～40℃
Operating humidity range(temperature up to +31°C)	85%RH within	85%RH within	85%RH within	85%RH within	85%RH within	85%RH within	85%RH within
Operating humidity range(temperature up to +40°C)	50%RH within	50%RH within	50%RH within	50%RH within	50%RH within	50%RH within	50%RH within
Material (Scale plate)	Equivalent to JIS SUS304 polished finishalent	Equivalent to JIS SUS304 polished finishalent	Equivalent to JIS SUS304 polished finishalent	Equivalent to JIS SUS304 polished finishalent	Equivalent to JIS SUS304 polished finishalent	Equivalent to JIS SUS304 polished finishalent	Equivalent to JIS SUS304 polished finishalent
Material(Weighing unit body)	Aluminum steel + epoxy resin coating	Aluminum steel + epoxy resin coating	Aluminum steel + epoxy resin coating	Aluminum steel + epoxy resin coating	Galvanized steel	Galvanized steel	Galvanized steel
Cable length	３m	３m	３m	３m	６m	６m	６m
Interface(Stand scale to display)	RS-485 standard (A3), RS-232 (option A1)	RS-485 standard (A3), RS-232 (option A1)	RS-485 standard (A3), RS-232 (option A1)	RS-485 standard (A3), RS-232 (option A1)	RS-485 standard (A3), RS-232 (option A1)	RS-485 standard (A3), RS-232 (option A1)	RS-485 standard (A3), RS-232 (option A1)

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Weighing Range [kg]	Readout limit [g]	Tare elimination [g]	Electrical bleeding [kg]	Weight [kg]	Loading platform dimensions(W) [mm]	Loading platform dimensions (D) [mm]	Specification sheet	Instruction Manual
ISEDE-16-H	16	0.1	16	4	16	400	300	217IS-A.pdf	MAN-ISEDE16-34-64-H-S-CE_WIS8000_4-en.pdf
ISEDE-34-H	34	0.1	34	4	16	400	300	217IS-A.pdf	MAN-ISEDE16-34-64-H-S-CE_WIS8000_4-en.pdf
ISEDE-64-H	64	0.1	64	13	16	400	300	217IS-A.pdf	MAN-ISEDE16-34-64-H-S-CE_WIS8000_4-en.pdf
ISEDE-64-S	64	1	64	13	16	400	300	217IS-A.pdf	MAN-ISEDE16-34-64-H-S-CE_WIS8000_4-en.pdf
ISFEG-64-S	64	1	64	0	30	560	450	217IS-A.pdf	MAN_ISFEG-64-S_Oper_en_9862800046.pdf
ISIGG-150-H	150	1	150	30	70	800	600	217IS-A.pdf	MAN-ISIGG150-300-H_WIS8001_3-en.pdf
ISIGG-300-H	300	2	300	60	70	800	600	217IS-A.pdf	MAN-ISIGG150-300-H_WIS8001_3-en.pdf
