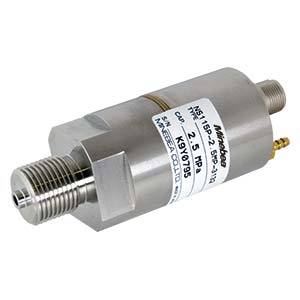

High-accuracy with long term stability pressure transmitter NS115P series
Precise, Robust, and Surge-Resistant: Pressure Gauges for Long-Term Stability.
Features
・Excellent in the long term stability.
・Accuracy 0.1%R.O. is available (including non-linearity, hysteresis and repeatability)
・Small size and light weight, the Cable horizontal putting out type is possible
・Excellent in solidity and a surge pressure
・Attached zero point adjustment
【Application】
Automatic transmission testing equipment, Solenoid valve testing device, Fuel cell evaluation device
-
-
scroll
Specification name
Specification contents
Rated capacity 500 kPa ~ 10MPa Safe overload 200 %R.C. Ultimate overload 300 %R.C. Accuracy 0.1 %R.O. (including non-linearity, hysteresis and repeatability) Rated output (Current) 4 mA ~ 20 mA (2 wires method, Load resistance500 Ω or less, at 24 V) Rated output (Voltage) 0 V ~ 5 V, 0 V ~ 10 V (Load resistance 5 kΩ or more) Zero adjustment range ±1 % Power supply voltage 24 VDC (18 VDC ~ 28VDC) Power consumption Approx. 30 mA Insulation resistance 1 000 MΩ or more (50 VDC) Temp. range, compensated -20 ℃ ~ 70 ℃ Temp. range, safe -30 ℃ ~ 80 ℃ Temp. effect on zero ±0.15 %R.O./10 ℃ Temp. effect on output ±0.15 %LOAD/10℃ Ｏ-ring seal FKM4-class D (Selectable by the medium) Class of protection IP67 or equivalent Material of pressure hole SUS316L Material of cover SUS316 Material of pressure diaphragm Single crystal sapphire Mounting screw 1/8 ･ 1/4 ･ 3/8G{PF}, {PT} Tightening torque 20 N･m ~ 40 N･m -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Rated capacity
[kPa]Rated capacity
[Mpa]Weight(Approx.)
[g]CAD files[DXF]
3D CAD files [STEP]
3D CAD files 2 [STEP]
3D CAD files 3 [STEP]
NS115P-500KP*-***2 500 250 ns115p.dxf NS115P-500KP*-***2-x11x.STEP NS115P-500KP*-***2-x12x.STEP NS115P-500KP*-***2-x13x.STEP NS115P-1MP*-***2 1 250 ns115p.dxf NS115P-1MP*-***2-x11x.STEP NS115P-1MP*-***2-x12x.STEP NS115P-1MP*-***2-x13x.STEP NS115P-2MP*-***2 2 250 ns115p.dxf NS115P-2MP*-***2-x11x.STEP NS115P-2MP*-***2-x12x.STEP NS115P-2MP*-***2-x13x.STEP NS115P-2.5MP*-***2 2 250 ns115p.dxf NS115P-2.5MP*-***2-x11x.STEP NS115P-2.5MP*-***2-x12x.STEP NS115P-2.5MP*-***2-x13x.STEP NS115P-5MP*-***2 5 250 ns115p.dxf NS115P-5MP*-***2-x11x.STEP NS115P-5MP*-***2-x12x.STEP NS115P-5MP*-***2-x13x.STEP NS115P-10MP*-***2 10 250 ns115p.dxf NS115P-10MP*-***2.STEP NS115P-10MP*-***2-x22x.STEP NS115P-10MP*-***2-x23x.STEP -
Specification
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
