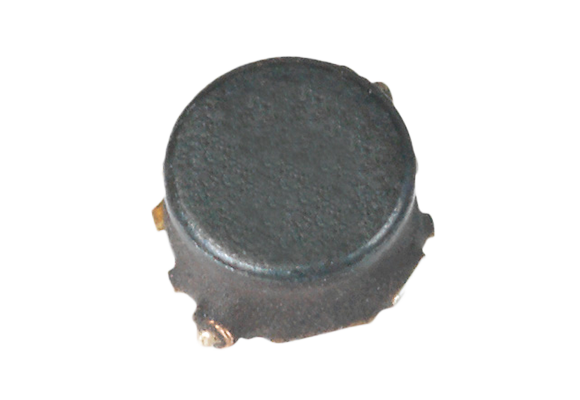

Compacts, low-height, and high current power inductor used in digital devices and mobile phones.
Several dimensions are available.
Features
1. Low DCR by magnetically shielded structure with magnetic resin.
2. Impact-resistant structure with wider terminals.
3. Non-Solder products by laser welding.
-
-
For DC-DC converter power supply of miniature portable devices (mobile phones, portable game equipment,
DSC, DVC, etc.). -

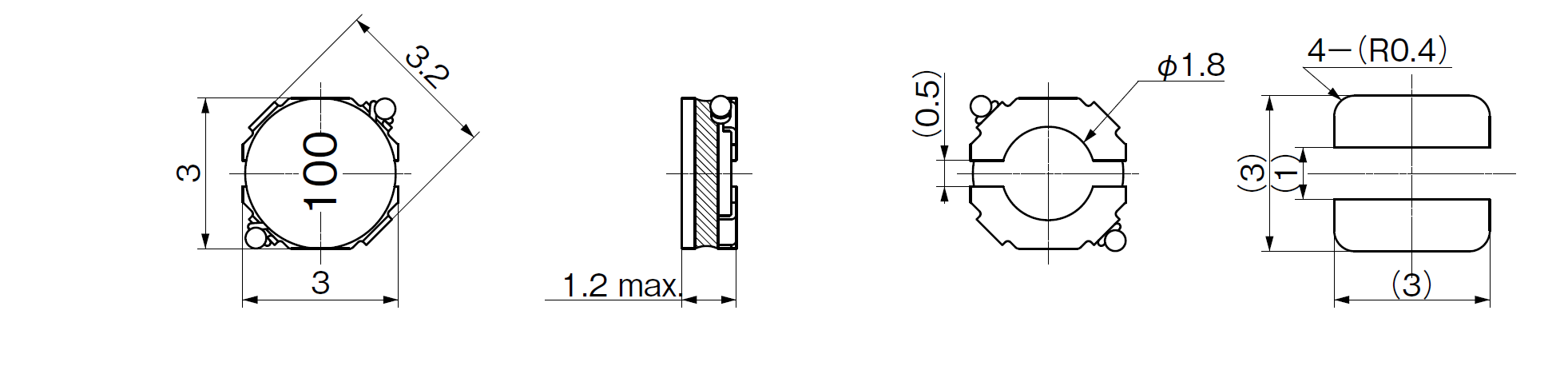

mm -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Size(W)
[mm]Size(D)
[mm]Length(H) Max
[mm]Stamp
Inductance
[micro H]Inductance Tolerance
lower limit
[%]Inductance Tolerance
upper limit
[%]Inductance Test Freq.
[KHz]DC Resistance
[m OHM]Rated DC
CurrentL=-30 percent
[A]Rated DC
Current deltaT=40K
[A]3.0 3.0 1.2 1R0 1.00 -30 30 1 65.00 2.00 1.80 3.0 3.0 1.2 1R5 1.50 -30 30 1 85.00 1.70 1.70 3.0 3.0 1.2 2R2 2.20 -30 30 1 90.00 1.40 1.50 3.0 3.0 1.2 2R7 2.70 -30 30 1 125.00 1.35 1.35 3.0 3.0 1.2 3R3 3.30 -30 30 1 140.00 1.15 1.20 3.0 3.0 1.2 3R9 3.90 -30 30 1 165.00 1.10 1.15 3.0 3.0 1.2 4R7 4.70 -30 30 1 180.00 1.00 1.10 3.0 3.0 1.2 5R6 5.60 -30 30 1 240.00 0.92 1.00 3.0 3.0 1.2 6R8 6.80 -30 30 1 250.00 0.85 0.95 3.0 3.0 1.2 100 10.00 -20 20 1 390.00 0.64 0.75 3.0 3.0 1.2 120 12.00 -20 20 1 470.00 0.60 0.65 3.0 3.0 1.2 150 15.00 -20 20 1 660.00 0.55 0.60 3.0 3.0 1.2 180 18.00 -20 20 1 750.00 0.52 0.54 3.0 3.0 1.2 220 22.00 -20 20 1 840.00 0.48 0.50 -
scroll
Q'ty
[pcs./reel]Tape Dimensions A
[mm]Tape Dimensions B
[mm]Tape Dimensions C
a
[mm]Tape Dimensions C
b
[mm]Tape Dimensions D
a
[mm]Tape Dimensions D
b
[mm]Tape Dimensions E
a
[mm]Tape Dimensions E
b
[mm]Tape Dimensions F
a
[mm]Tape Dimensions F
b
[mm]Tape Dimensions G
a
[mm]Tape Dimensions G
b
[mm]Tape Dimensions H
a
[mm]Tape Dimensions H
b
[mm]Reel Dimensions I
a
[mm]Reel Dimensions I
b
[mm]Reel Dimensions J
b
[mm]Reel Dimensions K
a
[mm]Reel Dimensions K
b
[mm]5000 3.3 3.3 9.5 0.2 12 0.3 8 0.1 5.5 0.1 1.5 1.5 0.3 0.05 φ 330 φ 2 1 13.5 1
