C3-P1.5R

RoHS AEC-Q200 Semi-Shielded structure

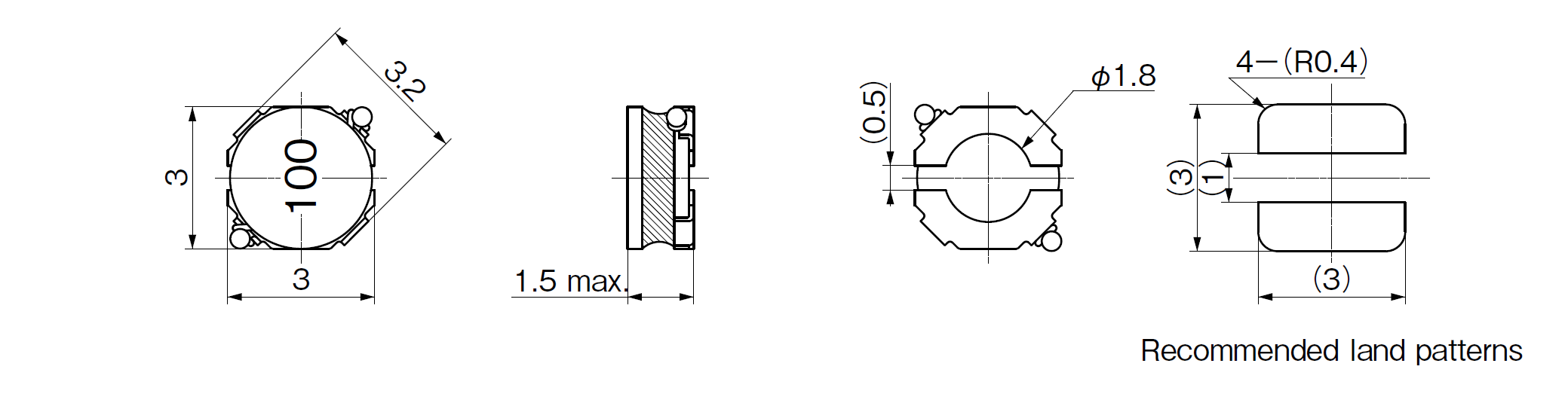

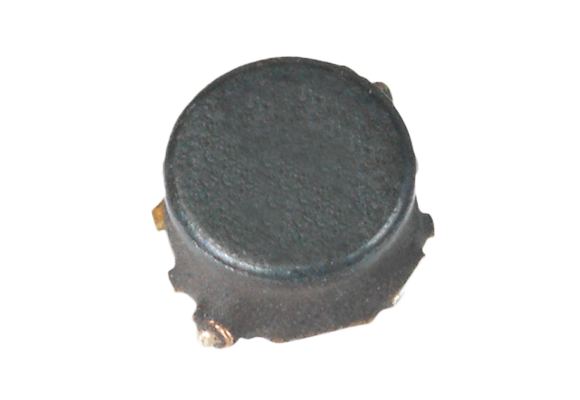

Compacts, low-height, and high current power inductor used in digital devices and mobile phones.
Several dimensions are available.

Features

1. Low DCR by magnetically shielded structure with magnetic resin.
2. Impact-resistant structure with wider terminals.
3. Non-Solder products by laser welding.

For DC-DC converter power supply of miniature portable devices (mobile phones, portable game equipment,
DSC, DVC, etc.).
mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Size(W) [mm]	Size(D) [mm]	Length(H) Max [mm]	Stamp	Inductance [micro H]	Inductance Tolerance lower limit [%]	Inductance Tolerance upper limit [%]	Inductance Test Freq. [KHz]	DC Resistance [m OHM]	Rated DC CurrentL=-30 percent [A]	Rated DC Current deltaT=40K [A]
3.0	3.0	1.5	1R5	1.50	-30	30	1	58.00	2.40	2.00
3.0	3.0	1.5	1R8	1.80	-30	30	1	65.00	2.20	1.90
3.0	3.0	1.5	2R7	2.70	-30	30	1	85.00	1.85	1.65
3.0	3.0	1.5	3R3	3.30	-30	30	1	115.00	1.65	1.50
3.0	3.0	1.5	3R9	3.90	-30	30	1	125.00	1.50	1.40
3.0	3.0	1.5	4R7	4.70	-30	30	1	140.00	1.35	1.30
3.0	3.0	1.5	5R6	5.60	-30	30	1	150.00	1.20	1.20
3.0	3.0	1.5	6R8	6.80	-30	30	1	200.00	1.15	1.10
3.0	3.0	1.5	8R2	8.20	-30	30	1	210.00	0.85	1.00
3.0	3.0	1.5	100	10.00	-20	20	1	240.00	0.70	0.90
3.0	3.0	1.5	120	12.00	-20	20	1	280.00	0.63	0.85
3.0	3.0	1.5	150	15.00	-20	20	1	365.00	0.58	0.75
3.0	3.0	1.5	180	18.00	-20	20	1	410.00	0.55	0.70
3.0	3.0	1.5	220	22.00	-20	20	1	555.00	0.47	0.60
3.0	3.0	1.5	270	27.00	-20	20	1	620.00	0.45	0.55
3.0	3.0	1.5	330	33.00	-20	20	1	830.00	0.40	0.52
3.0	3.0	1.5	390	39.00	-20	20	1	940.00	0.35	0.48
3.0	3.0	1.5	470	47.00	-20	20	1	1050.00	0.33	0.45
