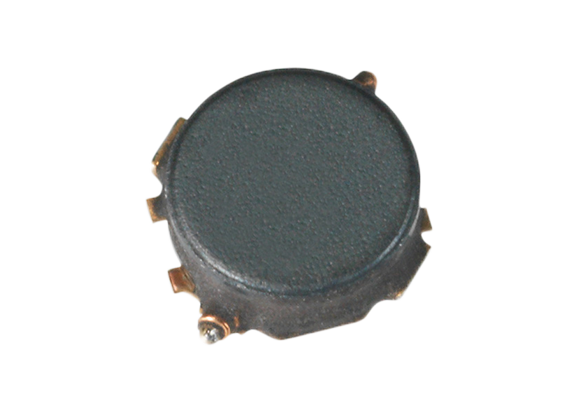

C4-P1.8R

RoHS AEC-Q200 Semi-Shielded structure

Compacts, low-height, and high current power inductor used in digital devices and mobile phones.
Several dimensions are available.

Features

1. Low DCR by magnetically shielded structure with magnetic resin.
2. Impact-resistant structure with wider terminals.
3. Non-Solder products by laser welding.

  • For DC-DC converter power supply of miniature portable devices (mobile phones, portable game equipment,
    DSC, DVC, etc.).

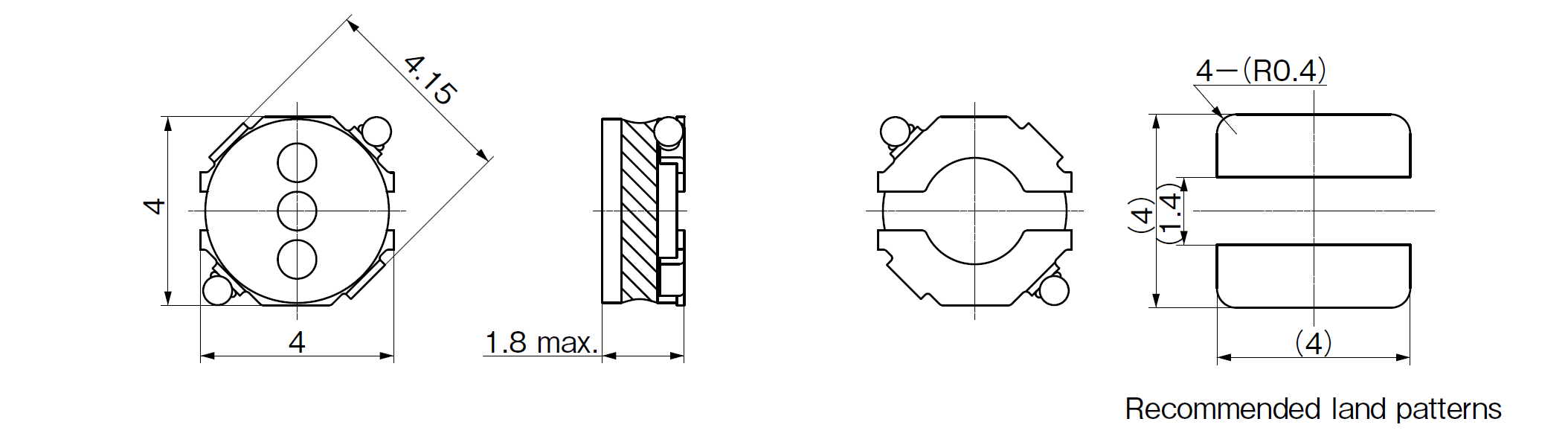

  • mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Size(W)
    [mm]

    Size(D)
    [mm]

    Length(H) Max
    [mm]

    Stamp

    Inductance
    [micro H]

    Inductance Tolerance
    lower limit
    [%]

    Inductance Tolerance
    upper limit
    [%]

    Inductance Test Freq.
    [KHz]

    DC Resistance
    [m OHM]

    Rated DC
    CurrentL=-30 percent
    [A]

    Rated DC
    Current deltaT=40K
    [A]
    4.0 4.0 1.8 1R2 1.20 -30 30 1 40.00 2.70 2.65
    4.0 4.0 1.8 1R5 1.50 -30 30 1 45.00 2.20 2.60
    4.0 4.0 1.8 1R8 1.80 -30 30 1 50.00 2.00 2.35
    4.0 4.0 1.8 2R7 2.70 -30 30 1 55.00 1.70 2.30
    4.0 4.0 1.8 3R3 3.30 -30 30 1 65.00 1.60 2.20
    4.0 4.0 1.8 3R9 3.90 -30 30 1 70.00 1.50 2.00
    4.0 4.0 1.8 4R7 4.70 -30 30 1 80.00 1.40 1.95
    4.0 4.0 1.8 5R6 5.60 -30 30 1 85.00 1.25 1.80
    4.0 4.0 1.8 6R8 6.80 -30 30 1 125.00 1.20 1.70
    4.0 4.0 1.8 8R2 8.20 -30 30 1 135.00 1.10 1.55
    4.0 4.0 1.8 100 10.00 -20 20 1 155.00 0.95 1.40
    4.0 4.0 1.8 120 12.00 -20 20 1 185.00 0.90 1.25
    4.0 4.0 1.8 150 15.00 -20 20 1 250.00 0.80 1.10
    4.0 4.0 1.8 180 18.00 -20 20 1 300.00 0.70 1.00
    4.0 4.0 1.8 220 22.00 -20 20 1 360.00 0.65 0.90
    4.0 4.0 1.8 270 27.00 -20 20 1 395.00 0.60 0.85
    4.0 4.0 1.8 330 33.00 -20 20 1 485.00 0.50 0.83
    4.0 4.0 1.8 390 39.00 -20 20 1 540.00 0.45 0.80
    4.0 4.0 1.8 470 47.00 -20 20 1 630.00 0.43 0.70
    4.0 4.0 1.8 560 56.00 -20 20 1 780.00 0.40 0.60
    4.0 4.0 1.8 680 68.00 -20 20 1 920.00 0.37 0.55

  • scroll

    Q'ty
    [pcs./reel]

    Tape Dimensions A
    [mm]

    Tape Dimensions B
    [mm]

    Tape Dimensions C
    a
    [mm]

    Tape Dimensions C
    b
    [mm]

    Tape Dimensions D
    a
    [mm]

    Tape Dimensions D
    b
    [mm]

    Tape Dimensions E
    a
    [mm]

    Tape Dimensions E
    b
    [mm]

    Tape Dimensions F
    a
    [mm]

    Tape Dimensions F
    b
    [mm]

    Tape Dimensions G
    a
    [mm]

    Tape Dimensions G
    b
    [mm]

    Tape Dimensions H
    a
    [mm]

    Tape Dimensions H
    b
    [mm]

    Reel Dimensions I
    a
    [mm]

    Reel Dimensions I
    b
    [mm]

    Reel Dimensions J
    b
    [mm]

    Reel Dimensions K
    a
    [mm]

    Reel Dimensions K
    b
    [mm]
    3000 4.2 4.2 9.5 0.2 12 0.3 8 0.1 5.5 0.1 2.1 2.1 0.3 0.05 φ 330 φ 2 1 13.5 1
