09225PB

AC fan motors driven by AC voltage rotate fans to cool the inside of industrial machines and other equipment instruments and exhaust the heat outside. AC fan motors use ball bearings manufactured in-house by Minebea.

Notes: The Air Flow in the table shows the average values in free air.

General Specifications

Motor Structure:Shaded Pole Induction Motor
Motor Protection:Impedance Protection
Insulation Resistance:Min 100M ohm by DC 500V Megger
Dielectric Withstand Voltage:AC1800V 3s
Allowable Ambient Temperature Range:
-10deg.C - +70deg.C (Operating)
-40deg.C - +70deg.C (Storage)
non-condensing environmentOld model name:3610PS

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Nominal Voltage [V]	Frequency [Hz]	Starting Voltage [V]	Current [A]	Input Power +10%/-20% [W]	Speed [min-1]	Max. Air Flow [m3/min]	Max. Air Flow [CFM]	Max. Static Pressure [In H2O]	Noise [dB]	Mass [g]
09225PB-A0L-EA-	100	50	65	0.190	13.0	2600	0.80	28.6	0.17	33.5	300
09225PB-A0L-EA-	100	60	65	0.150	10.0	3100	0.98	35.0	0.24	38.0	300
09225PB-A1L-EA-	115	50	75	0.170	12.0	2600	0.80	28.6	0.17	33.5	300
09225PB-A1L-EA-	115	60	75	0.130	9.0	3100	0.98	35.0	0.24	38.0	300
09225PB-B0L-EA-	200	50	130	0.100	13.0	2600	0.80	28.6	0.17	33.5	300
09225PB-B0L-EA-	200	60	130	0.080	10.0	3100	0.98	35.0	0.24	38.0	300
09225PB-B2L-EA-	220	50	165	0.100	13.0	2600	0.80	28.6	0.17	34.0	300
09225PB-B2L-EA-	220	60	165	0.080	10.0	3100	0.98	35.0	0.24	39.0	300
09225PB-B3L-EA-	230	50	180	0.090	13.0	2600	0.80	28.6	0.17	34.0	300
09225PB-B3L-EA-	230	60	180	0.070	10.0	3100	0.98	35.0	0.24	39.0	300
09225PB-B4L-EA-	240	50	180	0.085	13.0	2600	0.80	28.6	0.17	34.0	300
09225PB-B4L-EA-	240	60	180	0.065	10.0	3100	0.98	35.0	0.24	39.0	300

Rotation: Counterclockwise as seen from the label side
Airflow Outlet: Label side
*1: Average Values in Free Air
*2: Maximum Values in Free Air
*3: Minimum Values in Free Air

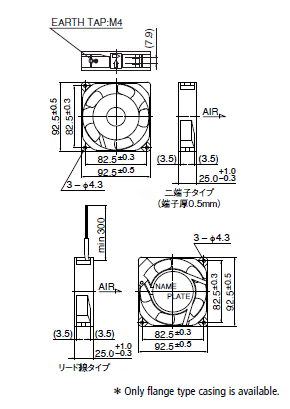

Outline

Material

Casing:Aluminum (Black Painting)
Impeller:Plastic (Black) UL94V-0
Bearing:Ball Bearing
Terminal:Faston #110 or Equiv
* Lead Wire type is also available.

Lead Wire:UL3266, AWG22
