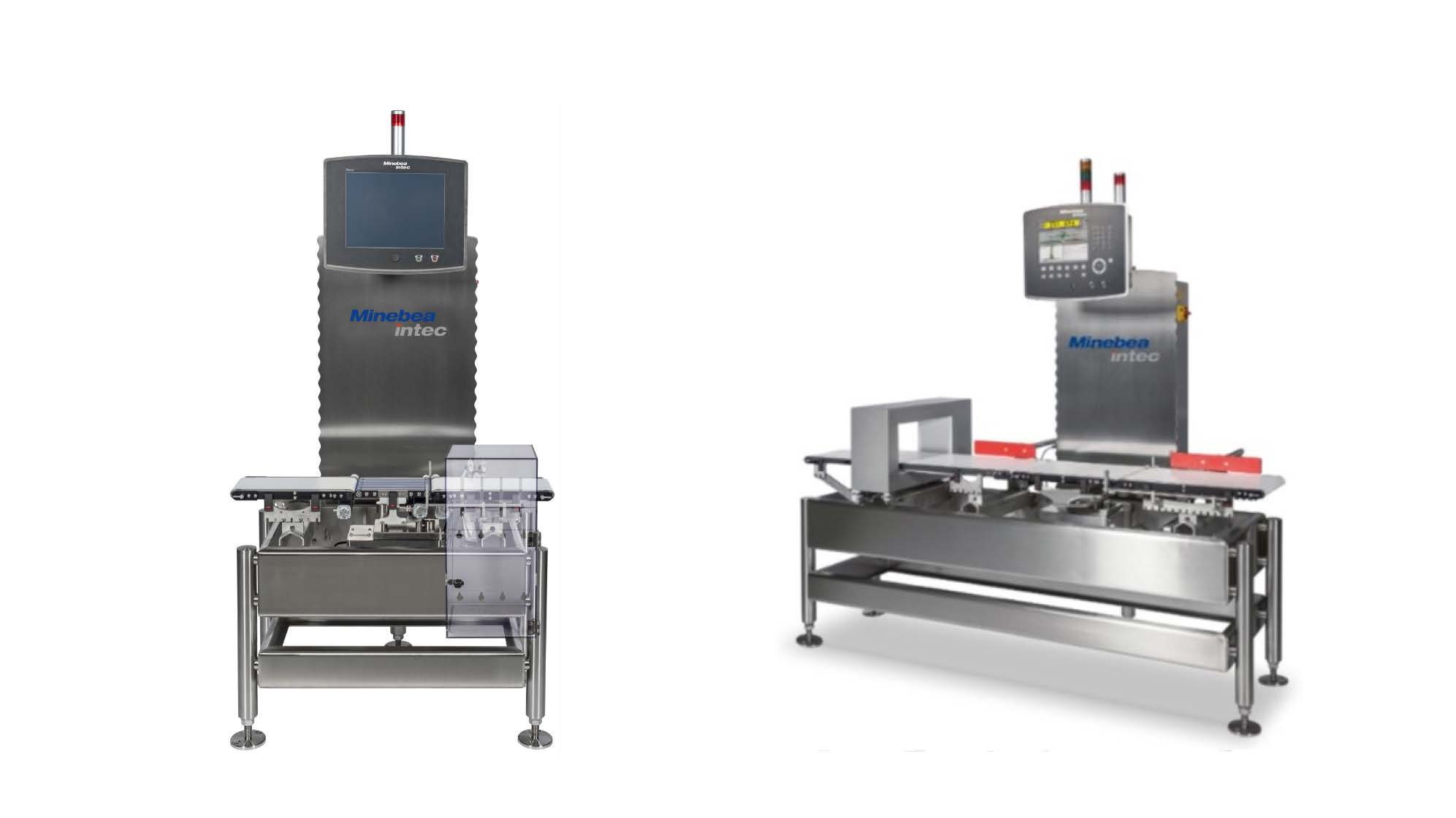

Flexus®/Flexus® Combi

Minebea Intec

Checkweighers are used in various industries such as the food or pharmaceutical industry, for checking product weight, completeness and other applications. The checkweigher product portfolio offers a wide range of checkweighers from in-line checkweighers and end-of-line checkweighers to combinations of checkweigher and metal detector.

Features

The Checkweigher Flexus® meets the strictest requirements when it comes to hygienic design guidelines for packaged foods.
A wide range of configurations ensure that every requirement is covered.
The Checkweigher Flexus® Combi combines the benefits of checkweighing and metal detection technology in one space-saving system.
Minimal space – maximum quality control.

・Hygienic design for easy cleaning and the highest level of quality in your production operations
・Safety and reliability thanks to EMFC load cell technology
・The ideal solution every time – configure Flexus® for your application
・Easy to combine with metal detection technology Vistus®

scroll

Specification name	Specification contents	Specification contents2	Specification contents3	Specification contents4
Item	WS 1 kg	WS 2 kg	WS 5 kg	WS 7 kg
Weighing range	0~1,000ｇ	0~2,000ｇ	0~5,000ｇ	0~7,000ｇ
Smallest calibration value	0.1g	0.2g	1g	1g
Standard throughput	0~600(pcs/min)	0~550(pcs/min)	0~450(pcs/min)	0~450(pcs/min)
Belt speed range	0.2 ~ 1.5 (m/s) / ~2.6 (m/s) (optional)	0.2 ~ 1.5 (m/s) / 0.5 ~ 1.2 (m/s) / ~2.2 (m/s)(optional)	0.2 ~ 1.0 (m/s) / 0.5 ~ 1.4 (m/s) / ~1.9 (m/s)(optional)	0.2 ~ 1.0 (m/s) / 0.5 ~ 1.4 (m/s) / ~1.9 (m/s)(optional)
Conveyor height-1	500mm ~ 1,400mm (with standard adjustable feet)	500mm ~ 1,400mm (with standard adjustable feet)	500mm ~ 1,400mm (with standard adjustable feet)	500mm ~ 1,400mm (with standard adjustable feet)
Conveyor height-2	575mm ~ 1,475mm (with hygienic adjustable feet)	575mm ~ 1,475mm (with hygienic adjustable feet)	575mm ~ 1,475mm (with hygienic adjustable feet)	575mm ~ 1,475mm (with hygienic adjustable feet)
Class of protection	IP54 / IP65 (optional)	IP54 / IP65 (optional)	IP54 / IP65 (optional)	IP54 / IP65 (optional)

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Catalog data	Catalog data2	Movie
WS 1 kg	DS_Flexus_en.pdf	Flexus_Combi_en.pdf	Product introduction
WS 2 kg	DS_Flexus_en.pdf	Flexus_Combi_en.pdf	Product introduction
WS 5 kg	DS_Flexus_en.pdf	Flexus_Combi_en.pdf	Product introduction
WS 7 kg	DS_Flexus_en.pdf	Flexus_Combi_en.pdf	Product introduction
