Features
●Wide range of weighing capacities and platform sizes Non-explosion-proof:59 types,explosion-proof:48 types
●Various options are available based on the operating method
●Made entirely of stainless steel(AlSl304 SUS304 equvalent Bead blasted finish,seamless machining
●Accuracy:1/3000(Uses 1/6000 load cell type)
●Max.display resolution :1/30000(When combined with a CAIS type display.However,resolution is 1/15000 if T8 option is used)
●Completely water proof IP67 and IP68
●Separable weighing part and display part.Display can be selected based on the application.
●Display connection cable 6m
●Single-sided slope equipped as standard(Double slopes available as options)【Explosion-priif type】
●Intrinsically safe explosion-proof structure Ex ib ⅡC T4(Explotion-proof international standard ATEX accredited.Supported with IFXS types)
●Select among 3 types:Power supply for installation in explotion-proof areas,power supply for installation in safe areas,and battery type.
Specification
| Specification name | Specification contents | Specification contents2 | Specification contents3 |
|---|---|---|---|
| Item | IFS4 | IFXS4 | IFS4 |
| OIML Accuracy class | C3 | C3 | C3 |
| Explosion-proof | ATEX：Ⅱ 2G 1D EEx ib ⅡC T4 T150℃ | ||
| Recommended supply voltage | 5VDC～12VDC | 5VDC～12VDC | 5VDC～12VDC |
| Load Cell Rated output | 2mV/V(4-point support) | 2mV/V(4-point support) | 2mV/V(4-point support) |
| Operating temperature range | -10℃～40℃ | -10℃～40℃ | -10℃～40℃ |
| Class of protection | IP67 | IP69 | IP68(IP69K available) |
| Material of element | Body:JIS SUS304 equivalent | Body:JIS SUS304 equivalent | Body:JIS SUS304 equivalent |
| Surface Finish | Glass beads blasted finish(standard)、Electro-polished finish(optional specification) | Glass beads blasted finish(standard)、Electro-polished finish(optional specification) | Glass beads blasted finish(standard)、Electro-polished finish(optional specification) |
| Cable length | 6m | 6m | 6m |
Table of P/N
| Parts No. | DimensionsL [mm] |
DimensionsB1 [mm] |
DimensionsL1 [mm] |
DimensionsH1 [mm] |
DimensionsH2 [mm] |
DimensionB2 [mm] |
Weighing Range [kg] |
Readability [g] |
Weighing Table Dimensions(W) [mm] |
Weighing Table Dimensions(D) [mm] |
Weighing Table Dimensions(H) [mm] |
OptionV1 | OptionV2 | OptionT17 | OptionT16 | Specification sheet | Instruction Manual |
|---|

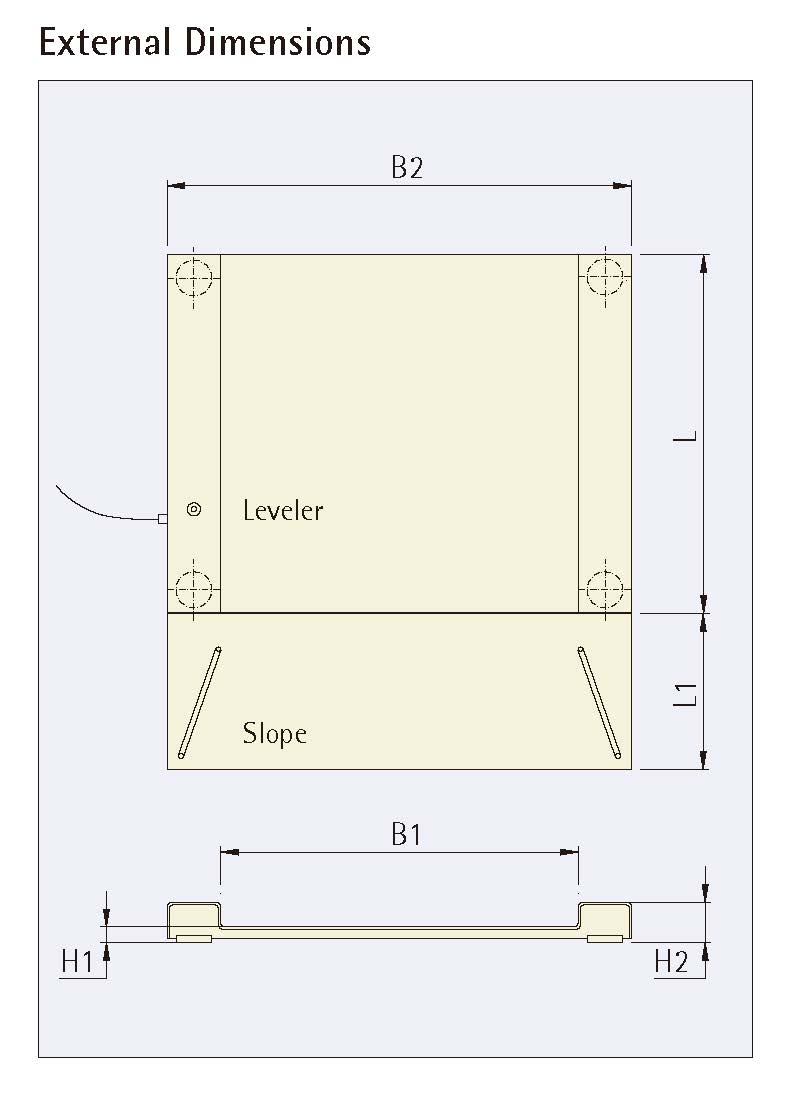

External view
