REB/PR/HRT series REB3

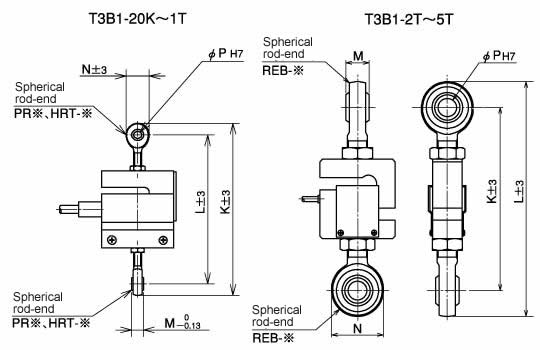

  • T3B1 series spherical rod-end

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    K
    [mm]

    L
    [mm]

    M
    [mm]

    N
    [mm]

    φP
    [mm]

    Weight
    [g]
    T3B1-20K~T3B1-50K use PR-6E 134 116 9 18 6 20
    T3B1-100K use PR-6E 144 126 9 18 6 20
    T3B1-200K~T3B1-1T use(PR-6E) PR-12E 176 146 16 30 12 100
    T3B1-200K~T3B1-1T use(HRT-12E) HRT-12E 194 160 16 34 12 125
    T3B1-2T use REB-4A 219 281 28 62 22 1150
    T3B1-5T use REB-4A 226 288 28 62 22 1150
