SCS series SCS1

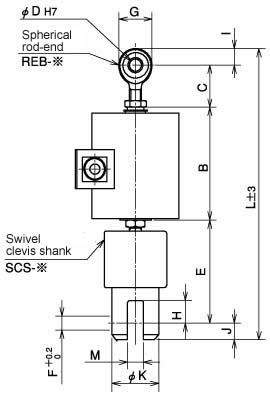

  • TCP1(A) series swivel clevis shunk + spherical rod end

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    B
    [mm]

    C
    [mm]

    φD
    [mm]

    E
    [mm]

    φF
    [mm]

    G
    [mm]

    H
    [mm]

    I
    [mm]

    J
    [mm]

    φK
    [mm]

    L
    [mm]

    M
    [mm]

    Weight
    [kg]
    TCP1-50K~TCP1-100K use REB-2, SCS-2 115 36 10 90 10 26 18 13 15 30 269 12 0.85
    TCP1A-200K~TCP1-1T use REB-3, SCS-3 115 43 12 105 14 34 23 17 17 48 297 16 1.92
    TCP1-2T~TCP1-5T use REB-4A, SCS-4 150 60 22 179 25 62 55 31 35 88 455 30 7.5
    TCP1-10T use REB-5, SCS-5 215 127 40 229 40 100 60 50 50 130 671 42 25.2
    TCP1-20T use REB-6, SCS-6 290 170 50 328 60 120 90 60 74 165 922 50 56.5
