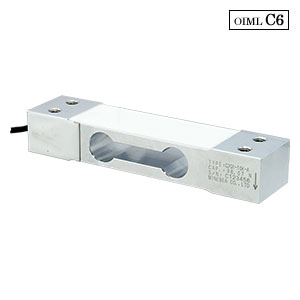

Middle capacity for commercial scale C2G1-＊-A-C6 OIML standard

Load cells to be applied to a electrical commercail scale.

Features

・Mid. capacity.
・Suitable for thin weighing scale.
・OIML R60 C6 certified & NTEP approved.

scroll

Specification name	Specification contents
Accuracy class	OIML R60 C6
Maximum scale interval	6,000
Rated capacity	6kg～50kg
Minimum detected scale (Vmin)	0.6g～5g
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2 mV/V±0.2 mV/V
Non-linearity	0.012 %R.O.
Hysteresis	0.012 %R.O.
Repeatability	0.010 %R.O.
Creep	0.008 %R.O./30 min
Creep recovery	0.008 %R.O./30 min
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.1 mV/V
Input resistance	400 Ω ～ 450 Ω
Output resistance	345 Ω ～ 355 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.010 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	Alluminium alloy
Durability	1,000,000 times with rated load applied.
Effect of eccentric load	■C2G1-6K～35K ・Size of loading plate is 300 mm x 300 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.02 %R.O. applied with 1/2 of rated capacity at the position of 75 mm of eccentricity.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kg]	Weight(Approx.) [g]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
C2G1-6K-A-C6	6	200	220	0.62	IP64 or equivalent	C2G1-6K-A-C6.STEP	c2g1-a.dxf
C2G1-10K-A-C6	10	200	295	0.53	IP64 or equivalent	C2G1-10K-A-C6.STEP	c2g1-a.dxf
C2G1-12K-A-C6	12	200	323	0.53	IP64 or equivalent	C2G1-12K-A-C6.STEP	c2g1-a.dxf
C2G1-15K-A-C6	15	200	360	0.53	IP64 or equivalent	C2G1-15K-A-C6.STEP	c2g1-a.dxf
C2G1-20K-A-C6	20	200	373	0.65	IP64 or equivalent	C2G1-20K-A-C6.STEP	c2g1-a.dxf
C2G1-25K-A-C6	25	200	417	0.65	IP64 or equivalent	C2G1-25K-A-C6.STEP	c2g1-a.dxf
C2G1-30K-A-C6	30	200	455	0.65	IP64 or equivalent	C2G1-30K-A-C6.STEP	c2g1-a.dxf
C2G1-35K-A-C6	35	200	493	0.65	IP64 or equivalent	C2G1-35K-A-C6.STEP	c2g1-a.dxf
C2G1-50K-A-C6	50	200	540	0.67	IP64 or equivalent	C2G1-50K-A-C6.STEP	c2g1-a.dxf
