PR6246Series
Minebea Intec

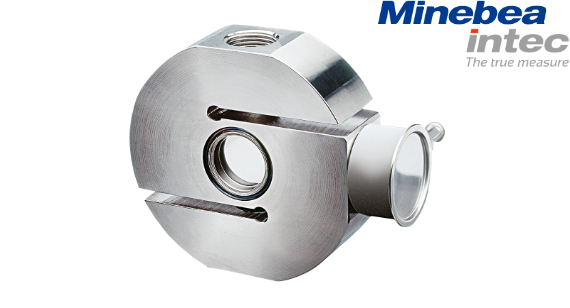

Compact,high-performance load cell.Load cells are of stainless specification as standard.
Features
・Stainless steel housing:SUS630 equivalent
・Completely waterpriif IP68
・Ultra-high accuracy,C6:1/12500
-
-
scroll
Specification name
Specification contents
Specification contents2
Specification contents3
Specification contents4
Specification contents5
Specification contents6
OIML Accuracy class D1 D1E C3 C3E C6 C6E Accuracy class 0.04%Emax 0.04%Emax 0.015%Emax 0.015%Emax 0.008%Emax 0.008%Emax Safe load limit 150%Emax 150%Emax 150%Emax 150%Emax 150%Emax 150%Emax Destructive load >300%Emax >300%Emax 300%Emax 300%Emax 300%Emax 300%Emax Rated output 2.0mV/V 2.0mV/V 2.0mV/V 2.0mV/V 2.0mV/V 2.0mV/V Rated output tolerance <0.25%Cn <0.25%Cn <0.07%Cn <0.07%Cn <0.07%Cn <0.07%Cn Zero balance <1.0%Cn <1.0%Cn <1.0%Cn <1.0%Cn <1.0%Cn <1.0%Cn Reproducibility <0.01%Cn <0.01%Cn <0.005%Cn <0.005%Cn <0.005%Cn <0.005%Cn Creep <0.03%Cn <0.03%Cn <0.015%Cn <0.015%Cn <0.008%Cn <0.008%Cn Non-linearity <0.03%Cn <0.03%Cn <0.01%Cn <0.01%Cn <0.01%Cn <0.01%Cn Hysteresis <0.04%Cn <0.04%Cn <0.015%Cn <0.015%Cn <0.008%Cn <0.008%Cn Temperature effect on Zero <0.028%Cn/10K <0.028%Cn/10K <0.01%Cn/10K <0.01%Cn/10K <0.007%Cn/10K <0.007%Cn/10K Temperature effect on Span <0.03%Cn/10K <0.03%Cn/10K <0.01%Cn/10K <0.01%Cn/10K <0.005%Cn/10K <0.005%Cn/10K Input resistance 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω 644Ω～656Ω Rated output 609Ω～611Ω 609Ω～611Ω 609Ω～611Ω 609Ω～611Ω 609Ω～611Ω 609Ω～611Ω Insulation resistance >5000×106Ω >5000×106Ω >5000×106Ω >5000×106Ω >5000×106Ω >5000×106Ω Nominal supply voltage 4～24V 4～24V 4～24V 4～24V 4～24V 4～24V Maximum supply voltage 28V 25V 28V 25V 28V 25V Nominal ambient temperature range -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ -10℃～+55℃ Usable ambient temperature range -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ Storage ambient temperature range -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ -40℃～+95℃ Explosion-proof certification in Japan 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0067/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0067/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0067/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0067/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0067/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0067/DEKRA) Conforms to overseas explosion protection standards 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga Class of protection IP68 / IEC 529
(completely waterproof · water depth 1.5m 10000h)IP68 / IEC 529
(completely waterproof · water depth 1.5m 10000h)IP68 / IEC 529
(completely waterproof · water depth 1.5m 10000h)IP68 / IEC 529
(completely waterproof · water depth 1.5m 10000h)IP68 / IEC 529
(completely waterproof · water depth 1.5m 10000h)IP68 / IEC 529
(completely waterproof · water depth 1.5m 10000h)Material of element Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent Cable specification Polyethylene,
4 core shielded cable
/ length 5m / diameter 5mm /
cable 4 x 0.35mm2Polyethylene,
4 core shielded cable
/ length 5m / diameter 5mm /
cable 4 x 0.35mm2Polyethylene,
4 core shielded cable
/ length 5m / diameter 5mm /
cable 4 x 0.35mm2Polyethylene,
4 core shielded cable
/ length 5m / diameter 5mm /
cable 4 x 0.35mm2Polyethylene,
4 core shielded cable
/ length 5m / diameter 5mm /
cable 4 x 0.35mm2Polyethylene,
4 core shielded cable
/ length 5m / diameter 5mm /
cable 4 x 0.35mm2Wiring specification Applied voltage +red/-blue
Output signal +green/-ashApplied voltage +red/-blue
Output signal +green/-ashApplied voltage +red/-blue
Output signal +green/-ashApplied voltage +red/-blue
Output signal +green/-ashApplied voltage +red/-blue
Output signal +green/-ashApplied voltage +red/-blue
Output signal +green/-ash -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Rated Capacity
[kgf]Weight
[kg]Gross Weight
[kg]Packaged Size(W)
[cm]Packaged Size(L)
[cm]Packaged Size(H)

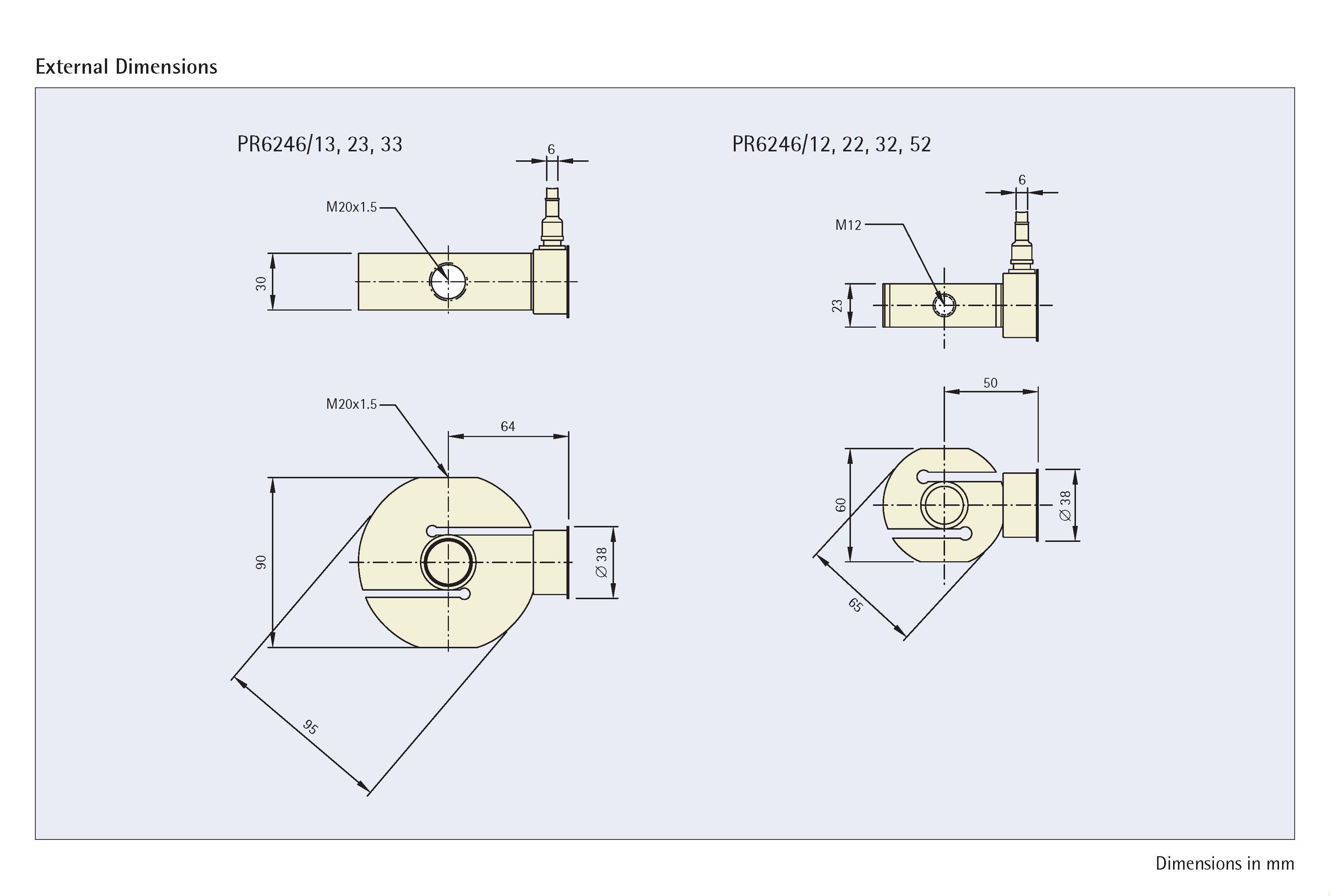

[cm]PDF data (outline drawing)
Specification sheet
Instruction Manual
PR6246/12 D1 100 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/22 D1 200 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/22 C3 200 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/22 C6 200 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/32 D1 300 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/32 C3 300 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/32 C6 300 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/52 D1 500 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/52 C3 500 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/52 C6 500 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/13 D1 1000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/13 C3 1000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/13 C6 1000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/23 D1 2000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/23 C3 2000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/23 C6 2000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/33 D1 3000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/33 C3 3000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/33 C6 3000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/12 D1E 100 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/22 D1E 200 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/22 C3E 200 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/22 C6E 200 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/32 D1E 300 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/32 C3E 300 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/32 C6E 300 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/52 D1E 500 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/52 C3E 500 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/52 C6E 500 0.7 1.1 22 21.5 13.5 KT54528-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/13 D1E 1000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/13 C3E 1000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/13 C6E 1000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/23 D1E 2000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/23 C3E 2000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/23 C6E 2000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/33 D1E 3000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/33 C3E 3000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf PR6246/33 C6E 3000 1.6 2.0 22 21.5 13.5 KT54529-2.pdf 213PR6246_REV-0.pdf KT60859-1.pdf
