Overview
dia. 55 × L30 DC Brushless motor outer rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in.
Compact, Light Weight and High Output
High Efficiency
Low Noise
Overcurrent and Locked Rotor Protection

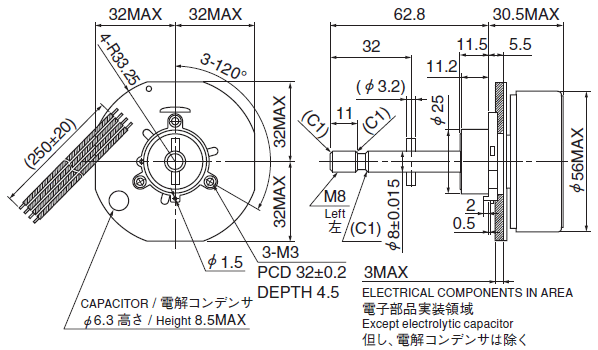

Overall View
Specifications
| Operating Voltage Min. [VDC] |
21.6 |
|---|---|
| Operating Voltage Nom. [VDC] |
24 |
| Operating Voltage Max. [VDC] |
26.4 |
| Operating Speed Min. [min-1] |
300 |
| Operating Speed Nom. [min-1] |
1000 |
| Operating Speed Max. [min-1] |
3000 |
| Continuous Rating Power Nom. [W] |
35 |
| Continuous Rating Power Max. [W] |
40 |
| Operating Temperature Min. [deg.C] |
0 |
| Operating Temperature Max. [deg.C] |
50 |
| Operating Humidity Min. [%RH] |
15 |
| Operating Humidity Max. [%RH] |
90 |
| Motor Weight Nom. [g] |
300 |
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
Property
