Brake type

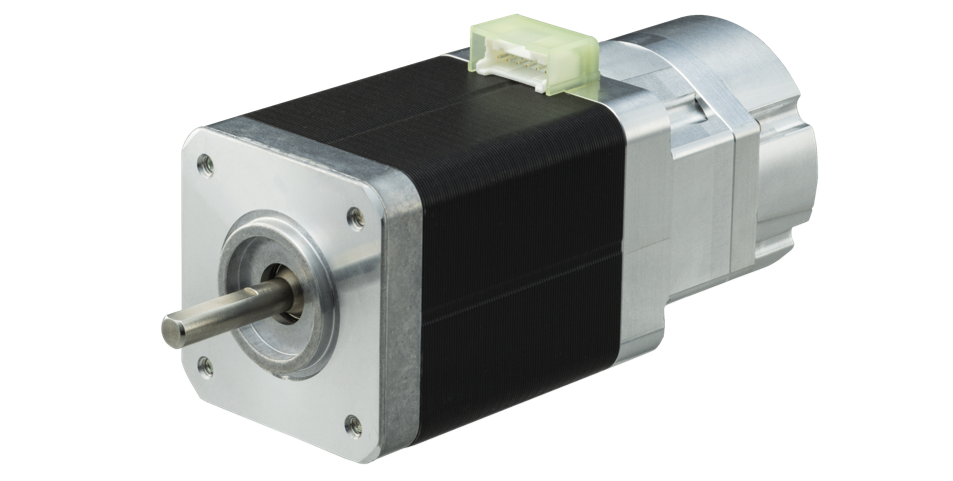

This series features a hybrid type stepping motor equipped with a non-excited operation type electromagnetic brake.

Normally, motors can still rotate due to external pressure even when the power is off. By installing an electromagnetic brake at the rear of the motor shaft, it prevents drag from vertical axes and increases the detent torque when the motor is stationary. Furthermore, the integration of the motor and brake contributes to reducing the required installation space.

A separate DC24V power supply is needed for the brake, independent of the motor's power supply.

Download

Parts List
Engineering Information
Case Studies
Industry

Brake type Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outer Diameter [mm]	Step Angle upper limit [°]	Brake Voltage [V]	Static Friction Torque [mN・m]	Catalog
Q17PM(□42)	42.0	1.80	24	300	Download
Q23KMH(□56)	56.4	1.80	24	1300	Download
