Power brushless motors

DNQ18HF (Fe Mg) for home appliances With Plate No Cover

Overview

Ⓐ dia. 70 × L42 DC Brushless motor outer rotor type
Ⓑ dia. 92 × L45 DC Brushless motor outer rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in.
Compact, Light Weight and High Output
High Efficiency
Low Noise
Overcurrent and Locked Rotor Protection

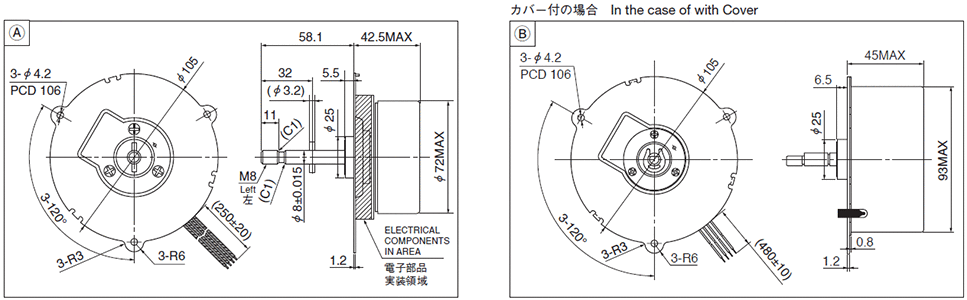

Overall View

Specifications

Operating Voltage
Min.
[VDC]
21.6
Operating Voltage
Nom.
[VDC]
24
Operating Voltage
Max.
[VDC]
26.4
Operating Speed
Min.
[min-1]
200
Operating Speed
Max.
[min-1]
3000
Continuous Rating Power
Max.
[W]
30
Operating Temperature
Min.
[deg.C]
0
Operating Temperature
Nom.
[deg.C]
20
Operating Temperature
Max.
[deg.C]
50
Operating Humidity
Min.
[%RH]
15
Operating Humidity
Max.
[%RH]
90
Motor Weight
Max.
[g]
700

Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
