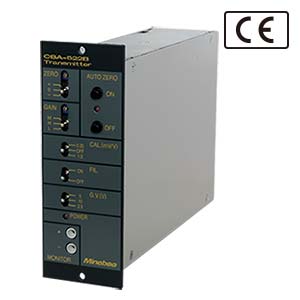

High response type transmitter CSA-522B

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・High response direct amplifier
・For measuring load, pressure, torque anddisplacement.
・Auto zero function as an option

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.3VDC within 120 mA (Changeable to 2.5 VDC or 5 VDC.)
Input range	0.35 mV/V ~ 3.5 mV/V
Sensitivity	±10 V (Non-isolation)
Load resistance	500 ohm or more
Sensitivity adjustable range	L: 1 000 times, M: 2 000 times, H: 3 000 times Adjustable from 1/1 to 1/4 on each setting
Zero adjustment range	±0.6 mV/V
Non-linearity (Display and voltage output)	0.005 %F.S.
Temperature efficient	Zero point ±0.2 μV/℃ (Inputconversion) Sensitivity ±0.005 %F.S./℃
Frequency response range	1 Hz or 30 Hz (-12dB/oct bessel type), 25 kHz (-3 dB)
Current output	DC4 mA ~ 20 mA (Non-isolation,at the voltage output DC0 V ~ 10 V) Load resistance 510 ohm or less, Non-linearity 0.05%F.S.
Operating temp. / humidity range	Temperature -10 ℃~ 50 ℃ Humidity 85 %RHor less(Non condensing)
Power supply	100 VAC (Permissiblevariable range: 90 VAC ~ 110 VAC) 50/60Hz
Power consumption	Approx. 15 VA
Outline dimensions (WxHxD)	49.5 mm x 138 mm x 173.6mm (Excludes protruding parts)
Weight	Approx. 1.1 kg
Options	Auto zero, Power supply voltage
