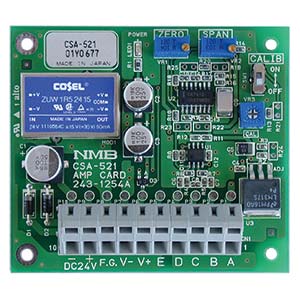

PCB type Transmitter CSA-521

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・Small size, Light weight
・Simple operation
・Cost effective

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.3VDC
Input range	10 V output at theinput of 0.5 mV/V
Sensitivity adjustable range	2000 times 1/1 to 1/4 times adjustable
Output	±10 V
Output Load Resistance	2 k-ohm or more
Zero adjustment range	±0.25 mV/V adjustableby trimmer *Adjust the tare weight cancellation by mountingthe resister.
Non-linearity (Display and voltage output)	0.02 %F.S.
Temperature efficient	Zero point ±1 μV/℃ (Inputconversion) Sensitibity within ±0.01 %F.S./℃
Frequency response range	1 kHz(-3 dB±1 dB)
Operating temp. / humidity range	Temperature -10 ℃ to 50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply	24 VDC 100 mA
Outline dimensions (WxHxD)	80 mm x 70 mm x 20 mm(Excludes protruding parts)
Weight	Approx. 100 g
Terminal board	236-110 (WAGO) : CN1
