Combics Series
- Minebea Intec
Features
●Various weighing ranges and plate sizes.Explosion-proof and non-explosion-proof include 46 types each
●High accuracy:1/6000
●Max.display resolution:1/30000(combined with our indicator)
●Completely waterproof IP67 and IP68
●RS232 equipped as standard(explosion-proof types require YDI05-Z barrier)
●Separable weighing part and display part(refer to pages 53～54 for display details).Display can be selected based on the application.(Non-explosion-proof:3 types,explosion-proof:1 type)(DC ED FE GF IG sizes are 3m.other are 6m.However,600kg range IG size types include 6m)【Explosion-proof type】
●Intrinsically safe explosion-proof structure Ex ib ⅡC T4(explosion-proof standard ATEX accredited.Supported with CAPXS types)
●Select among 3 types:Power supply for installation in explosion-proof areas,power supply for installation in safe areas,and battery type
Specification
| Specification name | Specification contents | Specification contents2 | Specification contents3 | Specification contents4 | Specification contents5 | Specification contents6 |
|---|---|---|---|---|---|---|
| Item | CAAPS | CAAPS | CAAPS | CAPXS | CAPXS | CAPXS |
| Explosion-proof | ATEX：Ⅱ 2 GD Eex ib Ⅱ C T4..T6 T135℃T155℃ | ATEX：Ⅱ 2 GD Eex ib Ⅱ C T4..T6 T135℃T155℃ | ATEX：Ⅱ 2 GD Eex ib Ⅱ C T4..T6 T135℃T155℃ | |||
| Recommended supply voltage | 5VDC～12VDC | 5VDC～12VDC | 5VDC～12VDC | 5VDC～12VDC | 5VDC～12VDC | 5VDC～12VDC |
| Load Cell Rated output | 1.94±0.1％(4-point support) | 1.94±0.1％(4-point support) | 1.94±0.1％(4-point support) | 1.94±0.1％(4-point support) | ||
| Operating temperature range | -10℃～40℃ | -10℃～40℃ | -10℃～40℃ | -10℃～40℃ | -10℃～40℃ | -10℃～40℃ |
| Class of protection | IP68 | IP68 | IP68 | IP67 | IP67 | IP67 |
| Cable length | 3m | 3m | 6m | 3m | 3m | 6m |
Table of P/N
| Parts No. | Weighing Range [kg] |
Readability [g] |
Weighing Table Dimensions(W) [mm] |
Weighing Table Dimensions(D) [mm] |
Weighing Table Dimensions(H) [mm] |
Weight [kg] |
Gross Weight [kg] |
OptionR2 | OptionS2 | OptionT1 | OptionR4 | Option Class of protection | Instruction Manual |
|---|

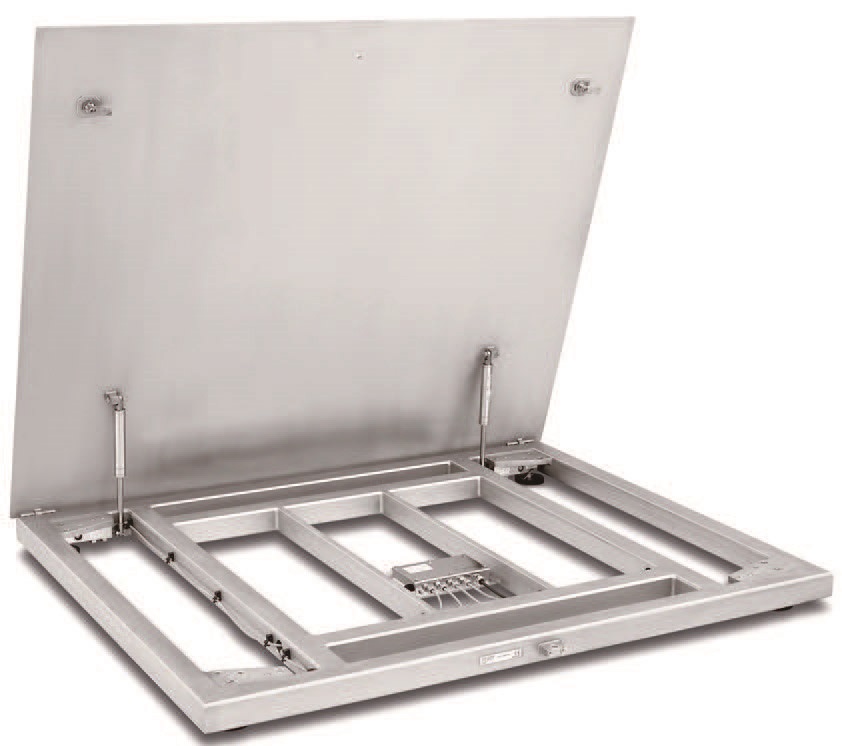

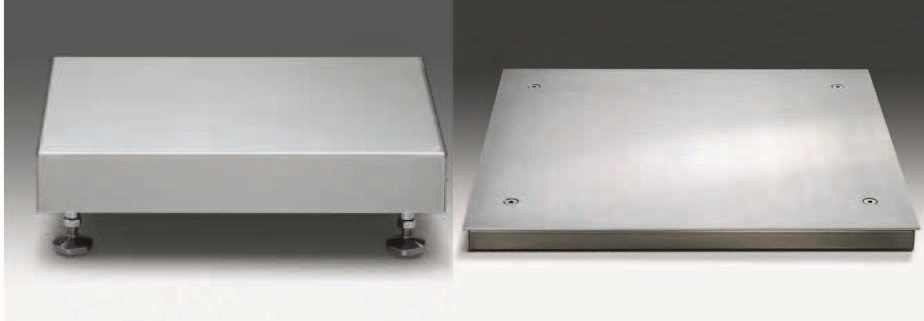

Optional Image1

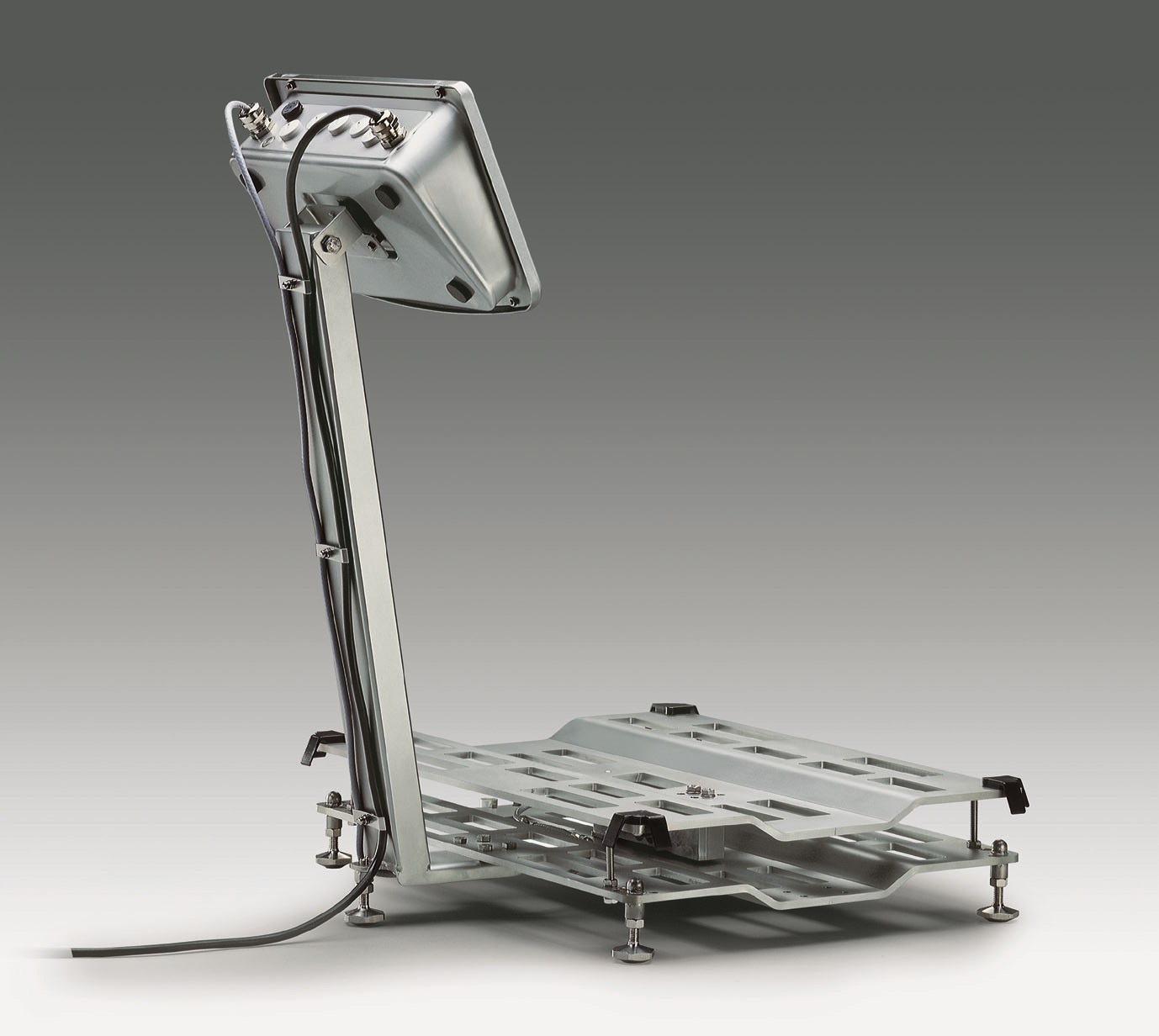

Optional Image2
