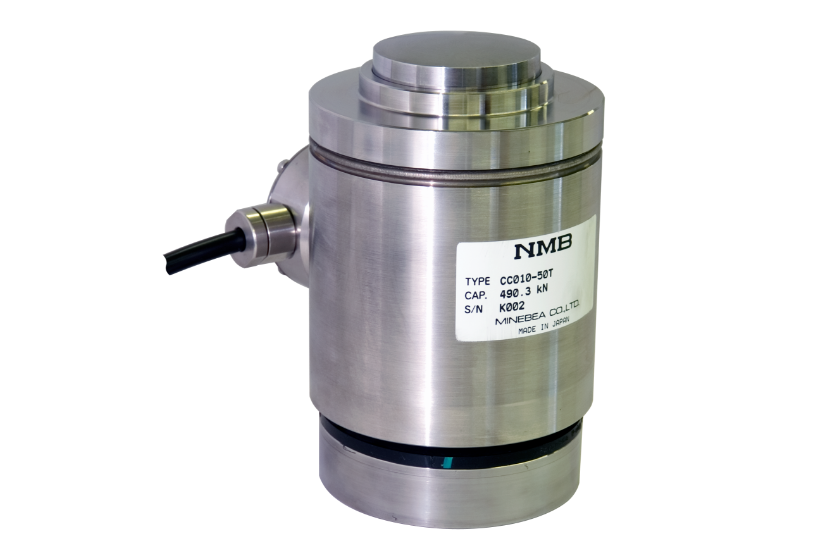

Double convex type compression service load cell CC010-C3 series (OIML spec.)

Load cell used for industrial scales.

Features

・Double convex mechanism.
・All stainless steel hermetic sealed structure.
・Available for OIML R60 Class C3 certified model.

scroll

Specification name	Specification contents
OIML Accuracy class	OIML R60 C3
Maximum scale interval	3,000
Rated capacity	2t ~ 50t
Minimum detected scale	0.333 kg～5kg
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2 mV/V±0.002 mV/V
Non-linearity	0.023 %R.O.
Hysteresis	0.023 %R.O.
Repeatability	0.010 %R.O.
Creep	0.016 %R.O./30 min
Creep recovery	0.016 %R.O./30 min
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.02 mV/V
Input resistance	693 Ω ～ 707 Ω
Output resistance	695 Ω ～ 705 Ω
Insulation resistance	5 000 MΩ or more (DC50 V)(between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－20 ℃～70 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.012 %LOAD/10 ℃
Class of protection	IP68 or equivalent
Material of element	Stainless steel

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [t]	Natural frequency [Hz]	Rated displacement [mm]	Weight(Approx. ) [kg]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
CC010-2T-C3	2	6800	0.06	5	φ7.0, 4-cores shielded 5 m cable directly attached, cable end is	CC010-2T~3T.zip	cc010_2t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
CC010-3T-C3	3	8100	0.06	5	φ7.0, 4-cores shielded 5 m cable directly attached, cable end is	CC010-2T~3T.zip	cc010_2t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
CC010-5T-C3	5	6100	0.06	5	φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated	CC010-5T.zip	cc010_5t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
CC010-10T-C3	10	2000	0.13	5	φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated	CC010-10T~30T.zip	cc010_10t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
CC010-20T-C3	20	2700	0.15	5	φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated	CC010-10T~30T.zip	cc010_10t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
CC010-30T-C3	30	3100	0.16	5	φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated	CC010-10T~30T.zip	cc010_10t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
CC010-50T-C3	50	3400	0.19	5	φ7.0, 4-cores shielded 10 m cable directly attached, cable end is separated	CC010-50T.zip	cc010_50t.dxf	No.KT53425-2	ENKT60387-1_CC010.pdf
