BP/MP series BPMP1

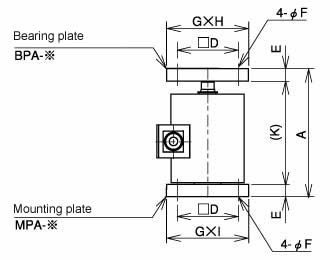

  • CCP1(A) series bearing plate + mounting plate

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    A
    [mm]

    □D
    [mm]

    E
    [mm]

    φF
    [mm]

    G
    [mm]

    H
    [mm]

    I
    [mm]

    K
    [mm]

    Weight
    [kg]
    CCP1-50K(-Z)~ CCP1-100K(-Z) use BPA-1-B, MPA-1A-B 151.5 77 15 8 100 100 100 121.5 3
    CCP1A-200K(-Z)~ CCP1-1T(-Z) use BPA-1-B, MPA-1-B 155 77 15 8 100 100 100 125 3
    CCP1-2T(-Z)~ CCP1-5T(-Z) use BPA-3-B, MPA-3A-B 214 105 23 12 130 128 130 168 6
    CCP1-10T use BPA-4-B, MPA-4A-B 305 125 30 14 160 153 155 245 12
    CCP1-20T use BPA-6-B, MPA-6A-B 377 150 30 14 200 200 185 317 18
