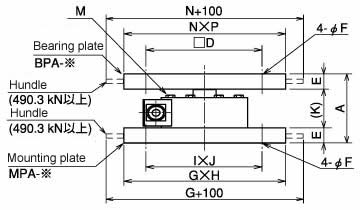

BP/MP series BPMP2

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Item	Accessory part No.	A [mm]	□D [mm]	E [mm]	φF [mm]	G [mm]	H [mm]	I [mm]	K [mm]	M	N [mm]	φP [mm]	Weight [kg]
CWV1-2T/ UWV1-2T use	BPA-3-B, MPA-16	105	105	23	12	210	130	185	59	8-M6	130	130	7.7
CWV1-5T/ UWV1-5T use	BPA-3-B, MPA-17	107	105	23	12	210	130	185	61	8-M6	130	130	7.7
CWV1-10T/ UWV1-10T use	BPA-4-B, MPA-18	140	125	30	14	160	160	125	80	8-M10	160	160	11.7
CWV1-20T/ UWV1-20T use	BPA-6-B, MPA-19	175	150	30	14	200	200	160	115	8-M12	200	200	18.4
CWV1-50T/ UWV1-50T use	BPA-8-B, MPA-20	270	200	60	23	260	260	200	150	8-M16	260	260	61.5
CWV1-100T/ UWV1-100T use	BPA-11, MPA-21	325	280	60	27	360	360	280	205	16-M20	360	360	119
