BP/MP series BPMP3

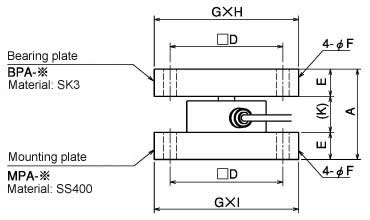

  • CMM1/CMP1 series bearing plate / mounting plate

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    A
    [mm]

    □D
    [mm]

    E
    [mm]

    φF
    [mm]

    G
    [mm]

    H
    [mm]

    I
    [mm]

    K
    [mm]

    Weight
    [kg]
    CMM1(R/J)-50K~ CMM1(R/J)-2T use BPA-1-B, MPA-2-B 55 77 15 8 100 100 100 25 2.7
    CMP1-250K~CMP1-5T use BPA-4-B, MPA-5-B 100 125 30 14 160 153 155 40 11.4
    CMP1-10T use BPA-4-B, MPA-5-B 105 125 30 14 160 153 155 45 11.4
    CMP1-20T use BPA-4-B, MPA-14-B 110 125 30 14 160 153 155 50 11.6
